Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection

China Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection supplier
Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection supplier Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection supplier

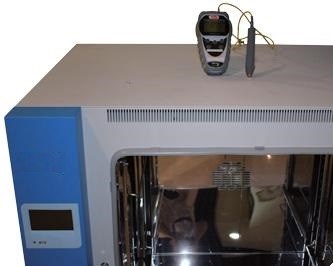

Large Image :  Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE, ISO9001, UL
Model Number: BO-30F, BO-50F, BO-120F, BO-200F, BO-400F

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: wood box
Delivery Time: 20 work days
Supply Ability: 10 unit per month
Contact Now
Detailed Product Description

Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection Touch Screen Operation


Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection Automatic Temperature Control



Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection Forced Air Convection






Forced Air Oven



The forced air oven controls very efficiently the temperature starting from 10°C room temperature up to 200°C(or 300°C).The PID controller,with double color display, shows constantly the set temperature and real temperature inside the chamber. Moreover it’s possible at any time see the operating time. It will automatically stop working as soon as temperature over limiting.



Features

●Colourful touch screen controller.

●304 stainless steel,mirror polishing processing, easy to clean and maintain.

●High-power fan forced convection,with 3-speed fan power adjustable,good uniformity.

●The shelf design of anti-tilting to avoid the accidents when pulling out the shelves.

●With reserved test hole,real-time detection of the temperature in working chamber.

●The height of shelves is adjustable to meet different containers’ drying and sterilizing requirement.

●With a top damper adjustment technology to ensure the gas convection enough in working chamber.

●Thermal temperature sensor with high precision,high accuracy and stability.

●With limited temperature alarm system.

●Programming setting function with 7 periods and 9 steps for each period, which means there are 63 programmable steps in total. (option)



Specifications



● Temperature Range: RT+10℃ ~200℃ (300℃ )

● Electrical Requirement: AC220V,50Hz

● Display Resolution: 0.1℃

● Temperature Uniformity(@150℃ ): ±2.0℃

● Timer Range: 1~5999mins



Model BO-30F BO-50F BO-120F BO-200F BO-400F
Chamber Volume 35L 59L 115L 234L 400L
Standard Quantity of Shelves/Max 2/5 2/9 3/12 3/16 3/16
Shelves loading 20Kg 20Kg 20Kg 20Kg 20Kg
Net Weight(Kg) 43 51 83 112 158
Internal Dimension (W×H×D,mm) 320×320×300 400×415×305 520×530×430 650×650×500 1000×800×510
External Dimension (W×H×D,mm) 610×540×550 690×640×560 810×755×685 940×875×750 1285×1060×750
Power Consumption 900W 1100W 2050W 2500W 3100W
