Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System

China Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System supplier

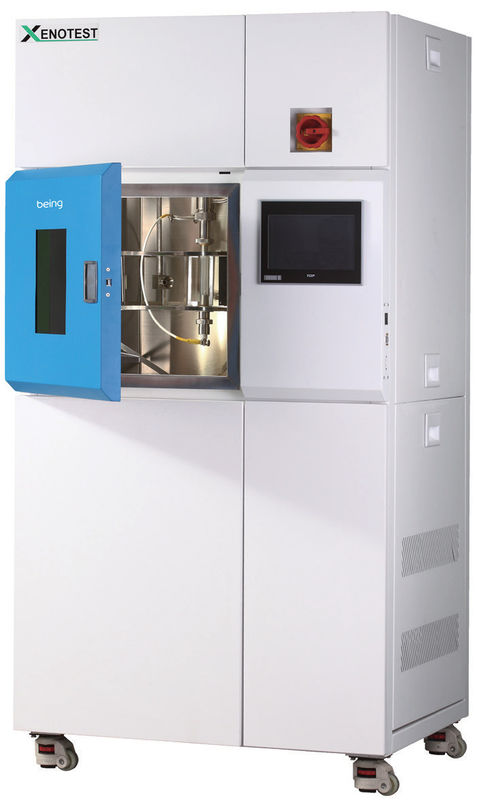

Large Image :  Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE, ISO9001, UL
Model Number: BS3000, BS7000

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: wood box
Delivery Time: 20 work days
Supply Ability: 10 unit per month
Contact Now
Detailed Product Description



Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System



Water-cooling type large xenon test chamber provides enough exposure area, reliable simulate spectrum sunlight.



Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System Touch Screen Operation



Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System Automatic Humidity Control



Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System Automatic Temperature Control





Features



●Rotating experimental rack to expose the full and uniform.

●9.7 inch touch screen, easy to understand and operate, Irradiation, blackboard temperature, rain cycle and so on could be easily to set and display.

●The unique spray system to satisfy the spraying for both inside and outside of the sample.

●Optional narrow wavelength @340nm,@420nm and Wide wavelength@300nm- 400nm irradiance automatic control system.

●Adjustable high irradiance control and the intensity can be up to the level of two suns even higher.

●International general blackboard or black mark temperature sensor.

●With the temperature and humidity control system.

●Provide internal and external light filter, simulate the different outdoor test conditions by user.

●With water quality monitoring and alarm function to avoid water pollution affecting the test results.

●Equipped with irradiance detector (standard @ 340nm) provides user-friendly calibration.



Specification



Model BS3000 BS7000
Lamp Atlas 4.5kW Water-cooling xenon lamp Atlas 6.5kW Water-cooling xenon lamp
Working chamber(W×D×H,mm) 580×580×690 780×780×790
Exposure area 2188cm2 6500cm2
Template Monolayer 22pcs template(145mm×70mm) Three-layer 65 pcs template(145mmx70mm)
Irradiance control range 0.25~1.2 W/m2 @340nm(Standard); 0.5~2.5W/m2 @420nm; 30~180 W/m2 (@300~400nm)
Irradiance deviation 0.01W/m2
Sample surface temperature control Blackboard temperature control system
Temperature control Automatic temperature control system
Blackboard temperature 40~110℃ , ±1℃
Temperature range 35~85℃ , ±1℃
Temperature collection Blackboard, black mark temperature collection
Humidity control Automatic humidity control system
Relative humidity Illumination:10%~75%RH, ±3%RH; No Illumination:10%~95%RH, ±3%RH
Illuminometer standard @340nm irradiation detection table (option@420nm, option@300-400nm)
Safety alarm Over-temperature, lack of water, water quality alarm
Power consumption AC380V, 50Hz, 3phase/N/E



Suitable for testing the following materials




Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System Textiles Material

Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh SystemMakeup Products



Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System Paint, Costing



Water Cooling Large Xenon Test Chamber With Reliable Simulate Spectrum Sunligh System Plastic, Rubber Materials
