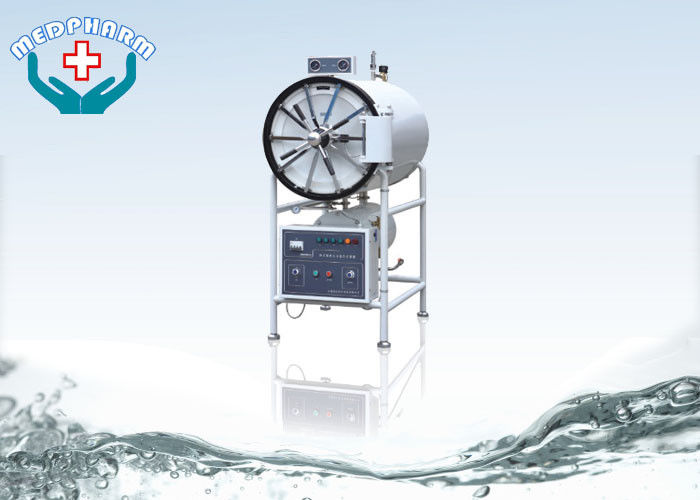

Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function

Good quality Hospital Steam Sterilizer for sales
Good quality Hospital Steam Sterilizer for sales
It is worthy to cooperate with Medpharm again. Also, prompt action on after sales service left me a deep impression.

—— Manusawee Wareesuwan

I like the sterilizer here running in our factory,it is wonderful.It is fully made to my requirement.Before that I contact many suppliers but they can

—— Marina.Stolyrova

I'm Online Chat Now

Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function

China Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function supplier
Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function supplier Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function supplier

Large Image :  Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: WS-400YDC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in wooden case
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 UNITS PER WEEK
Contact Now
Detailed Product Description
Chamber Volume: 400L Material: SS304
Standard: CE Application: Hospital , Laboratories
Feature: With Drying System Type: Pressure Steam Sterilizer

Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function





Features



  • Door safety locking system
  • With adjustable timer and adjustable pressure/temperature controller
  • Working process indicator
  • Beep alarm and shut off after cycle finish
  • Safe protection of water lack, over temperature, over pressure
  • Drying system
  • Full structure of stainless steel



Technical data



Models

WS-150YDC

WS-200YDC

WS-280YDC

WS-400YDC

Volume

150L

200L

280L

400L

Chamber

φ440×1000mm

φ515×1000mm

φ600×1000mm

φ700×1100mm

Max pressure

0.22MPa

Max temperature

134℃

Adjustment of temperature

105℃- 134℃

Sterilization timer

0-60 min

Time of drying

0-60 min

Heat average

≤±2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

Dimension

1400*600*1600mm

1400*670*1650mm

1400×770×1780

1430×880×1830

Transport dimension

1550×750×1850

1560×820×1850

1680×920×2100

1600×1050×2100

 G.W/N.W

320/240 KG

350/260 KG

465/365 KG

530/420 KG



Applications



1. Robust and rigid construction.



2. Horizontal Autoclaves (for Dry Sterilization Steam Jacket & Separate Boiler) are most ideal

    for bulk sterilization requiring assured and reliable total destruction of all living micro-organisms.



3. Horizontal Autoclaves is ideal tool for Laboratories, Hospitals, Nursing Homes, Agricultural R&D;

    labs etc, Pharmaceutical, Food & Beverage Industries and Institutions.



4. Suitable for Sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments,

    glassware, utensils etc.



Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function

Horizontal Pressure Cylindrical Medical Steam Sterilizer With Drying Function
