Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System

China Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System supplier
Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System supplier Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System supplier

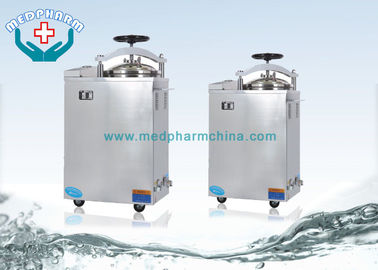

Large Image :  Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: LS-35HG

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in wooden case
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 UNITS PER WEEK
Contact Now
Detailed Product Description
Application: Clinics, Laboratories Chamber Volume: 35L
Feature: Drying System Controller: Micro-computer Control Panel
Material: SS304 Or 316L Safety System: Door Safety Lock System



Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System



Quick detail



  • 35 Liter autoclave chamber volume
  • Advanced micro-computer control panel
  • Independent temperature and pressure monitoring
  • Chamber constructed of 304Ti grade stainless steel
  • Accelerated cooling technology reduces cycle time



Specifications



1.   Hand wheel locked / unlocked lid style

2.   Digital LED display of temperature and time and controlled by micro-computer

3.   Working process indicator

4.   Beep alarm and shut off after cycle finish

5.   Steam inner circulation system

6.   Drying system



Parameters



Max working pressure

0.22MPa

Max working temperature

Max working temperature: 134℃

Adjustment of temperature

105---134℃

Adjustment of Timer

0---99min

Chamber temperature difference

≤±1℃





Model chart



Order No.

Chamber

Dimensions

(mm)

Package Dimensions

(mm)

NW/GW

Power

LS-35HG

35L(φ318*450mm)

600*410*1030

730*500*1170

77/96Kg

2.5KW/AC220V,50Hz

LS-50HG

50L(φ340*550mm)

650*410*1140

730*500*1290

83/102Kg

3KW/AC220V,50Hz

LS-75HG

75L(φ400*600mm)

690*470*1140

760*550*1290

98/120Kg

4.5KW/AC220V,50Hz

LS-100HG

100L(φ440*650mm)

730*510*1270

820*600*1380

110/135Kg

4.5KW/AC220V,50Hz





Applications



Vertical sterilizer for clinics, laboratories, research institutes, hospitals
