High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder

Good quality Hospital Steam Sterilizer for sales
Good quality Hospital Steam Sterilizer for sales
It is worthy to cooperate with Medpharm again. Also, prompt action on after sales service left me a deep impression.

—— Manusawee Wareesuwan

I like the sterilizer here running in our factory,it is wonderful.It is fully made to my requirement.Before that I contact many suppliers but they can

—— Marina.Stolyrova

I'm Online Chat Now

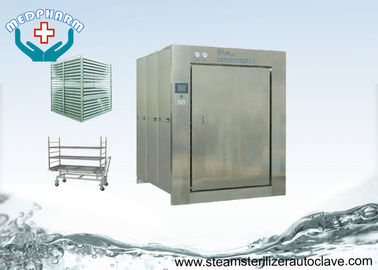

High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder

China High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder supplier
High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder supplier High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder supplier

Large Image :  High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-0.36

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance/LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Application: Medical Sterilization Agent: Steam
Chamber Capacity: 360 Liters Chamber Material: AISI 316
Principle: High Pressure Steam Printer: Micro-printer Recorder

High Pressure Autoclave Steam Sterilizer With Micro-Printer Recorder



Description:



With an innovative high performance sterilizing technology, this small capacity autoclaves

 are characterized by a chamber completely made of stainless steel AISI 316L and entirely

covered by a full jacket system.





Sterilizer features:



  •  User friendly control panel
  •  Software with 17 programmes, 15 of which are pre defined and all 17 can be customized
  •  Stainless steel AISI 304 panel
  •  Possibility to have the maintanance area on the left or on the right side of the autoclave
  •  Process piping made of stainless steel AISI 316L with tri-clamp fittings
  •  High effective liquid ring vacuum pump for faster processes
  •  Steam generator equipped with min/max water level indicator
  •  Integrated thermal paper printer
  •  Ergonomic working and loading position



Specifications:



Model

MD-0.36

Door number

Double door

Door type

Motorized Hinge Door

Chamber volume

360L

Chamber Size

600*600*1000mm

Overall Size

1350*1800*1340mm

Net Weight

800kg

Steam

25Kg/cycle

Water

60Kg/cycle

Power(KVA)

2KVA

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Test programmes

heating, Bowie & Dick, vacuum test

Working programs

Multiple customizable programs for textiles, instruments,

rubbers, culture medium and liquids in unsealed bottles.



 APPLICATION :



1. Hospital CSSD

2. Operating room

3. Medical centers

4. Outpatient care centers

5. Medical clinics

6. Emergency rooms





Keyboard and printer:



Multifunctional keyboard: Interface through virtual keyboard on the Touch Screen to select

 the process parameters and enter cycles programming data.



 The command enables the cycle parameters configuration through password within the safety

 range defined in the design.



Printer: The printer can be optionally installed on the frontal panel of the sterilizer and it enables

 to document the process by registering the time of the beginning of the process, time, temperature

 and pressure data of the inner chamber during the sterilization process, beginning of the cycle,

 cycle phases, beginning and end of exposure phase and indication of signature place of operator

 and supervisor’s unit.



 The printer consists of a plastic body and a lid that covers the paper reel. It has a thermal print

 mechanism and uses paper reel to print.



Recorder: optionally installed in the sterilizer front panel. High quality graphic recorder for obtaining

data such as: time, temperature and pressure. It presents configurable channels which allow the

 visualization of measures, scales or graphic bars. The recorder may be operated through operation keys or using a PC through a Compact Flash card or serial port.

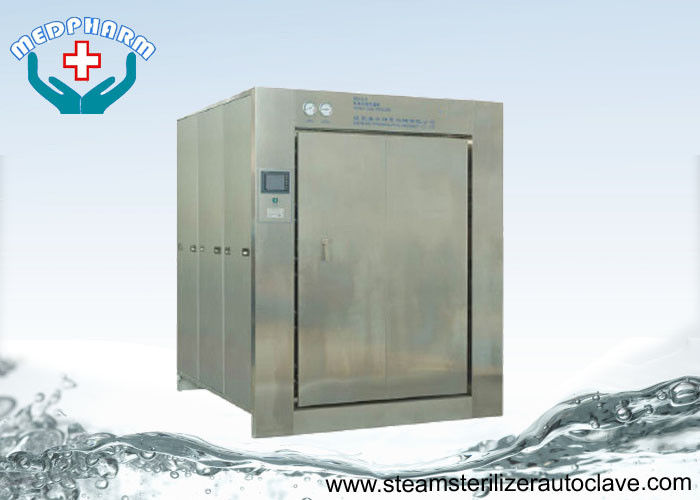

High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder

High Pressure Autoclave Steam Sterilizer With Micro Printer Recorder



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
