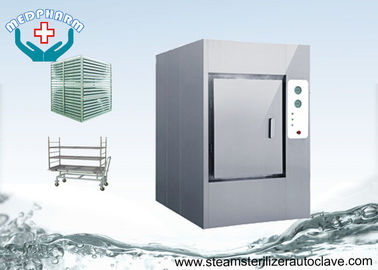

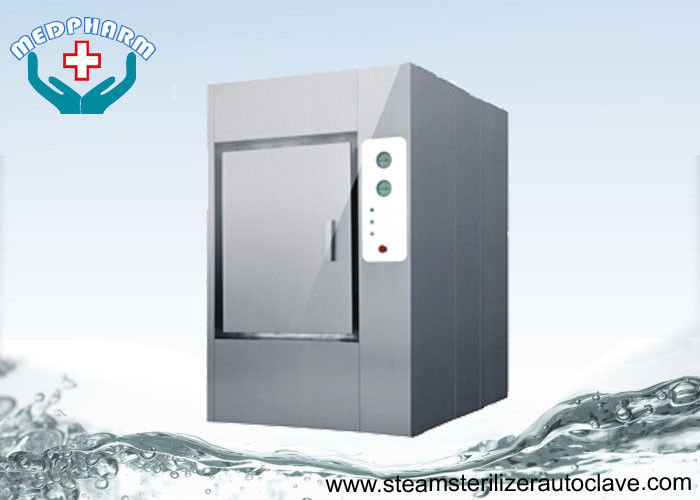

Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket

Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket
Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket

Large Image :  Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE / ISO
Model Number: MDB-0.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance/LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Door Type: Motorized Hinge Door Application: Pharmaceutical Industry
Material (chamber / Jacket): Steel / AISI304 / AISI316 Seal: FDA Approved Silicone Door Sealystem
Pneumatic Valves: Provide Reliability And Low Maintenance Costs Drain System: Floor-sloping Drain System
High Light:

High Pressure Steam Sterilizer

,

Table Top Autoclave Steam Sterilizer

Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket



Key features:



•   Mirror polished (<20Ra) chamber and door with "easy-clean" rounded corners and

floor-sloping drain system.

•   High temperature FDA approved silicone door seal.

•   Non-proprietary components for all plumbing, electrical and control systems.

•   Industrial grade pneumatic valves provide high reliability and low maintenance costs.

•   Guaranteed chamber temperature control of +/- 0.5 oC.

•   Guaranteed chamber temperature distribution of +/- 1.0 oC.

•   Chamber drain line condensate level sensor system.

•   Ethernet communications for remote data acquisition capability for option.

•   Automatic temperature and pressure instrument calibration function.





Description:



Our pharmaceutical autoclaves are designed and manufactured in a state of the art facility in

compliance with cGMP regulations to meet the technical challenges of pharma and biotech

industries.



Pharmaceutical autoclaves provide precise control and reliable sterile processing. We provide high quality & safe autoclaves made from reliable long lasting components, and designed to conform to end user requirements (URS) for production and quality assurance processes.





Specification:



Model

MDB-0.6

Door type

Motorized Hinge Door ,single door

Chamber volume and size

600L , 610*910*1170mm

Overall Size

1450*1900*1510mm

Net Weight

1250kg

Steam

30Kg/cycle

Water

70Kg/cycle

Power(KVA)

3KVA

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Main components


SS304 built-in steam generator

Touch screen display

PLC control system

High effective liquid-ring vacuum pump



Materials for different choice:



MATERIALS are important for autoclaves


The chamber and jacket are manufactured in various grades of stainless steel.



Many sterilizer pressure vessels fail from pitting and stress corrosion cracking

 as a result of poor water quality in the steam generators.



Medpharm autoclaves incorporate an automatic blow down feature into its steam generators
which reduces this risk and makes the use of high quality materials such as 316L.


However we can supplied on requests in order to meet client’s individual requirements or tender specifications.



Chambers are electro-polished to give a high quality surface finish.



Chamber

STEEL



304 L stainless steel

STANDARD

316 L stainless steel



Jacket

STEEL



304 L stainless steel

STANDARD

316 L stainless steel



Door internal side

STEEL



304 L stainless steel

STANDARD

316 L stainless steel





Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket 0

Motorized Hinge Door Autoclave Steam Sterilizer With Silicone Gasket 1



Brochure unload here



Medpharm medical large steam autoclave brochure.pdf
