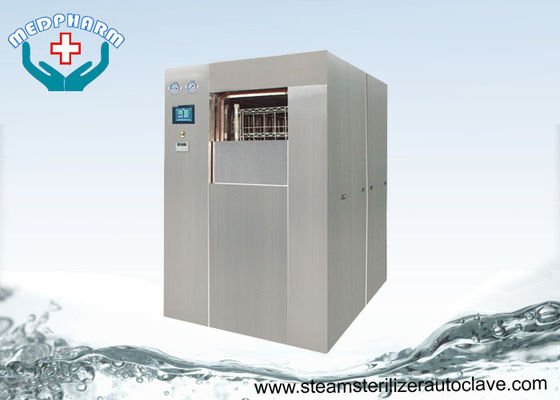

Veterinary Sterilization Lab Autoclave Sterilizer With Visually And Audibly Alarm

China Veterinary Sterilization Lab Autoclave Sterilizer With Visually And Audibly Alarm supplier

Large Image :  Veterinary Sterilization Lab Autoclave Sterilizer With Visually And Audibly Alarm

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO13485/ISO9001
Model Number: MD-0.6V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Production Name: Autoclave Steam Sterilizer Loading Capacity: 600 Liters Chamber
Material: Chamber Of SUS304 And Jacket Of Steel Door Construction: Vertical Sliding Single/double Door
Steam Supply: External Boiler Steam Installation Type: Floor Standing/pass Through Installation Between Isolation Walls



Veterinary Sterilization Laboratory Autoclave With Visually And Audibly Alarm





Brief



This Autoclave Steam Sterilizer is designed to sterilize veterinary instruments from veterinary

laboratories, veterinary quarantine station, epidemic prevention station , livestock farm and animal

hospitals etc.



Designed and manufactured according to ISO 9001, ISO 13485 system and latest moist steam

sterilizer related standards, which has the obvious advantage of low failure rate and easily

operation to ensure your satisfied using smoothly.



Safety



Door Safety



• Chamber door cannot be opened when chamber is pressurized

• Steam cannot enter the chamber when the door is open

• A cycle cannot start if the door is open or not properly locked

• Sliding door movement is stopped if an object is detected in front of the door



Safety Valves



• Both chamber and jacket are equipped with pressure relief valves to prevent excess pressure.

• Saturated steam can be supplied to the autoclave from building steam equipped safety valve

• A stand-alone generator or a built-in steam generator with safety valve is available for your option



Emergency Shut-Off


• Easily accessible emergency switches for immediate cycle shut-off.

• Double Independent Monitoring

• Digital and mechanical monitoring systems provide accurate pressure results which are displayed

 on the analog and digital displays.



Sterilization Programs



 1, B-D Test

  3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

2, Vacuum Leak Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

3, Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

4, Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

5, Liquid

15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min.

6, User Programmable

  All preset parameters can be resettable; total 15 kinds programs can be customized



Loading/Unloading System



Standards equipped: 1 piece loading cart of SUS316L stainless steel, 1 piece trolley of SUS304

 stainless steel for single door sterilizer and 2 pieces trolley for double door.



Loading plate, racks or shelves are available for option.



All loading/unloading system features of,

• High capacity for maximum throughput

• Eliminates operator handling of hot loads

• Swivel casters for easy maneuverability

• Low profie docking mechanism for easy alignment

• Racks and shelves for selected chamber sizes



Main Parameters



Model

MD-0.6V

Door type

Vertical sliding single/double door

Max working pressure

0.23Mpa

Working vacuum degree

<-0.086Mpa

Max working temperature

134℃

Chamber size

1670*600*600 mm(L*W*H)

External dimension

2010*1350*1800mm(L*W*H)

Net weight

1200Kg

Utilities Supply

Electric power

AC380V, 50Hz, 3Ph/N/E,3KVA

Water

0.15---0.3MPa, Hardness <50ppm, pH Neutral, 55Kg/cycle

Steam

0.5~0.7Mpa, 30Kg/cycle

Compressed air

0.5~0.7Mpa, 10 liters/minute





Medpharm laboratory autoclave



Veterinary Sterilization Lab Autoclave Sterilizer With Visually And Audibly Alarm



Autoclave alarm



Veterinary Sterilization Lab Autoclave Sterilizer With Visually And Audibly Alarm



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
