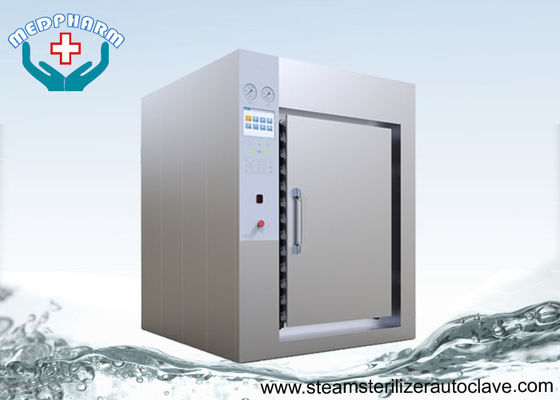

Pre Heated Autoclave Sterilizer Machine With Emergency Exhaust Switch And Safety Valve

China Pre Heated Autoclave Sterilizer Machine With Emergency Exhaust Switch And Safety Valve supplier

Large Image :  Pre Heated Autoclave Sterilizer Machine With Emergency Exhaust Switch And Safety Valve

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-1.2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in plastic firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Chamber Volume: 1200 Liters Chamber Material: AISI 316
Door Number: Single Or Double Door Type: Motorized Hinge Door
Feature: Flexible Loading System Application: Medical Instruments



Pre Heated Autoclave Sterilizer Machine With Emergency Exhaust Switch And Safety Valve







Pre Heated Autoclave Sterilizer Machine With Emergency Exhaust Switch And Safety Valve



Features



  • Ideal steam sterilizers for OR, CSSD, surgical centers, and sterile processing departments
  • High effective liquid-ring vacuum pump for saving energy
  • Excellent ergonomics together with well-adapted accessories
  • Integrated automatic PLC control system with one key operation function
  • High quality chamber with fine polished of quality stainless steel
  • Flexible loading system suitable for various goods requirements
  • High capacity in a small footprint
  • Motorized hinge door stable and easy operation
  • Touch screen technology for high user interaction
  • Possibility to have the technical area for easy maintain on the left or on the right or bothsides
  • Customized orders are available



Specifications



Model

MD-1.2

Door number

Single or double door

Door type

Motorized Hinge Door

Chamber volume

1200 liters

Chamber Size

680*1180*1500mm

Overall Size

1600*2000*1840mm

Net Weight

1950kg

Steam

45Kg/cycle

Water

120Kg/cycle

Power(KVA)

4KVA

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Steam feeding

Steam pressure: 0.4---0.7MPa

Water

Water pressure: 0.15----0.3MPa

Compressed air

Compressed air pressure: 0.5---0.8MPa



Description



The new, recently designed sterilizer was created through careful selection of materials, components and technical solutions that ensure durability, productivity and functional safety at every moment.
All of our machines are constructed according to a high standard of reliability and hygiene.



Construction



Chamber

Rectangular, with central crease and drop. The

existing piping under the covering protection is

in AISI 316 Stainless steel .

Jacket

Built in AISI 304 Stainless steel , Chamber is

 tested with hydrostatic pressure equal to 1.5 times

 the project pressure.

Piping

Manufactured in Stainless steel AISI 316 or AISI 304 .

The piping also has thermal insulation to avoid heat loss .

Chamber support structure

Adjustable feet allow leveling system

 and optionally casters for displacement.

Two independent validation inlets

Located on the lateral side of the chamber, allows

 introduction of sensors for process temperature

data collection.

Chamber drain

Protected with 1 ½” diameter filter in perforated stainless

steel plate. Located from the flange of the non-sterile door side.

Doors

Doors movements through a pneumatic cylinder, without

counterweight, with an anti-crush sensor and calibrated

 clamping force.The door has internal side in stainless

steel AISI 316L (optionally in AISI 316 ) with sanitary

polishing finish

Silicone gasket

Round, activated by compressed air to maintain the

 tightness of the door during the ste-rilization process.

Pre Heated Autoclave Sterilizer Machine With Emergency Exhaust Switch And Safety Valve



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
