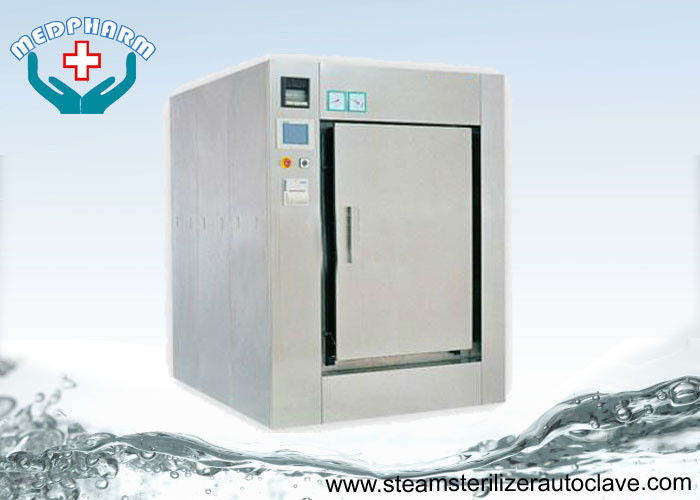

Mitsubishi PLC Control System SS304 Chamber 360 Liters CSSD Sterilizer

China Mitsubishi PLC Control System SS304 Chamber 360 Liters CSSD Sterilizer supplier

Large Image :  Mitsubishi PLC Control System SS304 Chamber 360 Liters CSSD Sterilizer

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO13485/ISO9001
Model Number: MD-0.36

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Door Type: Motorized Hinge Door Application: Hospital CSSD
Size Of Chamber: 60*60*100cm PLC: Mitsubishi Brand
Chamber Volume: 360 Liters Feature: Safety SS304 Material Chamber



Mitsubishi PLC Control System SS304 Chamber 360 Liters CSSD Sterilizer


Features



  • Load capacity : 360 liters
  • The sterilizer chamber is made from 304 stainless steel
  • Stainless steel piping and connectors are used to avoid corrosion
  • Integrated automatic PLC control system
  • Touch screen technology for high user interaction
  • Motorized hinge door stable and easy operation
  • Built-in steam generator is optional for small ones


Standard

Designed and manufactured according to ISO 9001, ISO 13485 system and latest moist steam
sterilizer related standards.

Applications

This sterilizer operates with saturated steam as the sterilization agent. Typical hospital
applications include wrapped or unwrapped goods, fabrics, surgical instruments, and utensils.
The end user has the ability to select from a wide range of steam sterilization programs and
test cycles, meeting the needs of any marketplace.

Programs

1. Test programs: Bowie & Dick test, vacuum test



The Bowie-Dick Test checks the effectiveness of removing air during the cycle .
The Vacuum Leak Test checks the integrity of the chamber and piping system.

2. Working programs


Multiple customizable programs for textiles, instruments, rubbers, culture medium and liquids in unsealed bottles.

3. Main adjustable parameters



  • Sterilization temperature rage: at 105°C to 134°C
  • Sterilization time rage: 0---99 minutes
  • Vacuum times: 0---9 times
  • Drying time: 0---99 minutes



Multiple adjustable parameters to ensure user’s customized programs are available, accurate
and perfect sterilization effect.

4. Cycles


Cycle No.

Cycle Name

Further Details

1

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time
8 min, drying time 5 min.

2

Clothing

3 times Vacuum, expose temperature 121℃, expose time
15 min, drying time 25 min.

3

Liquid

15 min exchange, expose temperature 121℃, expose time
15 min, cooling time 25 min.

4

B-D Test

3 times Vacuum, expose temperature 134℃, expose time
4 min, drying time 3 min.

5

Vacuum Leakage Test

Test the chamber connecting parts’ tightness effect. It’s
important to ensure the sterilization effect.

6

User Programmable

 All preset parameters can be resettable; Multiple customized
programs can be set and stored by user.



Our standard model for option



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.24

600*600*670

1500*1800*1010

700

20

30

2

MD-0.36

600*600*1000

1500*1800*1340

800

25

40

2

MD-0.6

610*910*1170

1500*1900*1510

1250

30

60

3

MD-0.8

610*910*1450

1500*1900*1790

1400

35

80

3

MD-1.0

680*1180*1250

1600*2000*1590

1550

40

100

4

MD-1.2

680*1180*1500

1600*2000*1840

1950

45

120

4

MD-1.5

680*1180*1870

1600*2000*2210

2150

50

150

4.5

MD-2.0

1000*1200*1700

2000*2000*2040

2400

60

200

4.5

MD-3.0

1000*1500*2000

2000*2200*2340

2950

90

300

5

MD-4.0

1000*1500*2670

2000*2200*3010

3600

120

400

6

MD-5.0

1000*1500*3340

2000*2200*3680

4500

150

500

8

MD-6.0

1000*1500*4000

2000*2200*4340

5300

180

600

8

MD-8.0

1000*1500*5340

2000*2200*5680

6900

240

800

12



Mitsubishi PLC Control System SS304 Chamber 360 Liters CSSD Sterilizer



Mitsubishi PLC Control



Mitsubishi PLC Control System SS304 Chamber 360 Liters CSSD Sterilizer



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
