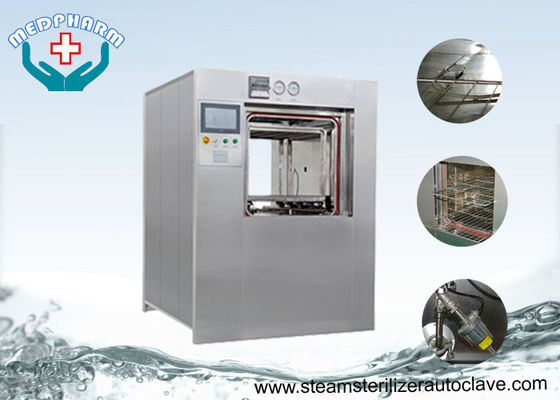

Prevacuum Air Sterilization Horizontal Autoclave With Built in Steam Generator

China Prevacuum Air Sterilization Horizontal Autoclave With Built  in Steam Generator supplier

Large Image :  Prevacuum Air Sterilization Horizontal Autoclave With Built in Steam Generator

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO13485/ISO9001
Model Number: MD-0.12V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Production Name: Horizontal Autoclave Application: Laboratory, Science Institutes, Clinic, Operation Room
Loading Capacity: 120 Liters Chamber Door Construction: Vertical Sliding Single/Double Door
Steam Supply: Built-In Steam Generator Of Full SUS304 Installation Type: Floor Standing(Single Door) Or Pass Through(Double Door)



Prevacuum Air Sterilization Horizontal Autoclave With Built in Steam Generator





Features



  • Built-in steam generator of full SUS304 stainless steel avoiding your trouble of external steam supply
  • Vertical sliding door stable and easy operation
  • Touch screen technology for high user interaction
  • Integrated automatic PLC control system with one key operation function
  • High quality chamber with fine polished of SUS304 or SUS316L for your selecting
  • Flexible loading system suitable for various goods requirements
  • Customized orders are available



Specification



This Vertical sliding Door Laboratory Autoclave is designed and manufactured specially for  science institutes laboratories, college laboratories, hospital CSSD, clinic, operating room to  sterilize experiment tools, medical instruments, sterile clothing, dressings, vessels, apparatuses,  operating tools, culture medium etc.



Designed and manufactured according to ISO 9001, ISO 13485 system and latest moist steam sterilizer related standards, which has the obvious advantage of low failure rate and easily operation to ensure your satisfied using smoothly.



Built-in steam generator of full SUS304 stainless steel is strong and controlled by the PLC intelligently avoiding your trouble of external steam supply.



Parameters



Model

MD-0.12V

Door type

Vertical sliding single/double door

Max working pressure

0.23Mpa

Working vacuum degree

<-0.086Mpa

Max working temperature

134℃

Chamber size

750*400*400 mm(L*W*H)

External dimension

1100*1250*1800mm(L*W*H)

Net weight

700Kg

Utilities

Electric power

AC380V, 50Hz, 3Ph/N/E,15KVA

Water

0.15----0.3MPa, Hardness <50ppm, pH Neutral

Compressed air

0.5~0.7Mpa





Applications



  • This vertical sliding door Laboratory autoclave is suitable for science institutes laboratories,  college laboratories, hospital etc to sterilize medical instruments, sterile clothing, dressings,  vessels, apparatuses, operating tools, culture medium and so on.
  • The single door autoclave is floor standing installation style, whose compact figure saves  your laboratory installation space. The double door one is convenient for isolation between different  clean area is this double door laboratory autoclave’s obvious characteristic.



Sterilization Programs



 1, B-D Test

  3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

2,Vacuum Leak Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

3, Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

4,Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

5, Liquid

15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min.

6, User Programmable

  All preset parameters can be resettable; total 15 kinds programs can be customized





Prevacuum Air Sterilization Horizontal Autoclave With Built  in Steam Generator

Prevacuum Air Sterilization Horizontal Autoclave With Built  in Steam Generator
