Overpressure Relief Protection Hospital Autoclave With Vertical Sliding Door

China Overpressure Relief Protection Hospital Autoclave With Vertical Sliding Door supplier

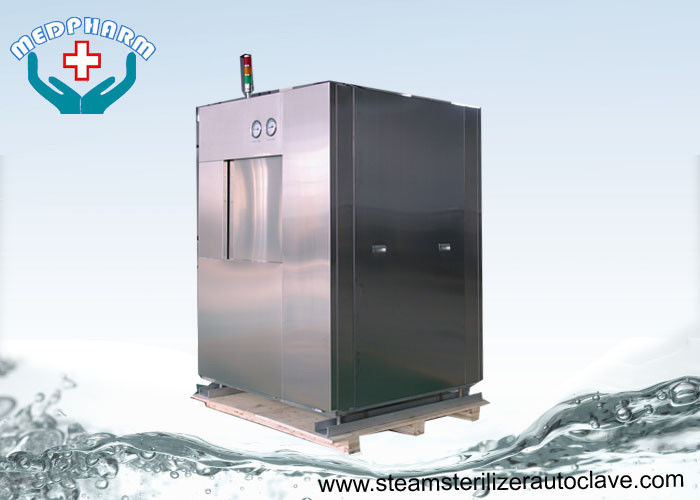

Large Image :  Overpressure Relief Protection Hospital Autoclave With Vertical Sliding Door

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO13485/ISO9001
Model Number: MD-0.36V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Production Name: Hospital Sterilizer Application: Hospital CSSD, Clinic, Operation Room, Laboratories Of Life Science Etc.
Loading Capacity: 360 Liters Chamber Material: Chamber And Jacket Full Of Sus304
Door Construction: Vertical Sliding Single Door Steam Supply: Built-In Steam Generator Of Full SUS304
Installation Type: Floor Standing



Overpressure Relief Protection Hospital Autoclave With Vertical Sliding Door



Specification



This Hospital sterilizer is configured for pre-vacuum sterilization of heat- and moisture-stable materials used in hospital, clinic, operation room and healthcare facilities. It can be equipped with pre-vacuum, Steam Flush Pressure Pulse (SFPP), gravity, liquid, and daily air removal test cycles which use, for example, a Bowie-Dick test pack to determine the effectiveness of removing air from a sterilizer chamber.


Designed and manufactured according to ISO 9001, ISO 13485 system and latest moist steam sterilizer related standards, which has the obvious advantage of low failure rate and easily operation to ensure your satisfied using smoothly.


Built-in steam generator of full SUS304 stainless steel with strong construction and long uptime is controlled by the PLC intelligently avoiding your trouble of external steam supply. Controlled by the sterilizer’s main PLC system, the steam generator, operation at the best status during the sterilization, is not only lowing the failure rate, but saving your money every days as well.



Control System



This Hospital Sterilizer features Mitsubishi PLC with enhanced functionality and user-friendly interface screen.



• Touch-screen with 800 x 480 display resolution

• Ink-on-paper impact printer,

• Help screens for programming and troubleshooting alarm conditions

• Automatic check of control program and cycle data maintains process integrity

• Individual digital data recorder for sterilization data storage.



Safety System



  • Control senses when door seal is closed and sealed, preventing cycle start until a limit switch signal is received. If control loses appropriate signal during cycle, alarm activates, cycle aborts and chamber safely vents with a controlled exhaust.
  • Steam generator Float Switch activates alarm, aborts cycle and safely vents chamber with a controlled exhaust if water lack is detected in the steam generator vessel.
  • Pressure Relief Valve limits the amount of pressure buildup so that the rated pressure in the vessel is not exceeded.



Steam Generator



This Hospital Sterilizer equipped with an electric steam generator includes an automatic water-in, electric heating and drain controlled by PLC.



Steam generator vessel of SUS304, electric heating element of SUS304 to ensure the clean steam supply.



• Electrical - Controls
  220 Volt, 50/60 Hz, 1-phase, 1KVA

Optional:

  220 Volt, 60 Hz, 1-phase, 1KVA or

  120 Volt, 50/60 Hz, 1-phase, 1KVA

• Electrical - Integral Steam Generator

  380Volt, 50 Hz, 3-phase, 18KW

Optional:

  208 Volt, 50/60 Hz, 3-phase, 18KW

  240 Volt, 50/60 Hz, 3-phase, 18KW

  380 Volt, 60 Hz, 3-phase, 18KW or

  480 Volt, 50/60Hz, 3-phase, 18KW



Parameters



Model

MD-0.36V

Door type

Vertical sliding single door

Max working pressure

0.23Mpa

Working vacuum degree

<-0.086Mpa

Max working temperature

134℃

Chamber size

1000*600*600 mm(L*W*H)

External dimension

1350*1350*1800mm(L*W*H)

Net weight

750Kg

Utilities Supply

Electric power

AC380V, 50Hz, 3Ph/N/E, 21KVA

Water

0.15---0.3MPa, Hardness <50ppm, pH Neutral, 85Kg/cycle

Compressed air

0.5~0.7Mpa, 10 liters/minute



Programs



Test programs: Bowie & Dick test, vacuum test.



Working programs:  Multiple customizable programs for textiles, instruments, rubbers, culture  medium and liquids in unsealed bottles.



Main adjustable parameters



  Sterilization temperature rage: at 105°C to 134°C

  Sterilization time range: 0---99 minutes

  Vacuum times: 0---9 times

  Drying time: 0---99 minutes



Multiple adjustable parameters to ensure user’s customized programs are available, accurate  and perfect sterilization effect.

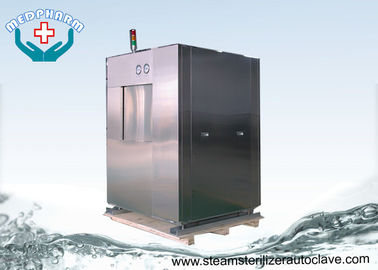

Overpressure Relief Protection Hospital Autoclave With Vertical Sliding Door Overpressure Relief Protection Hospital Autoclave With Vertical Sliding Door



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
