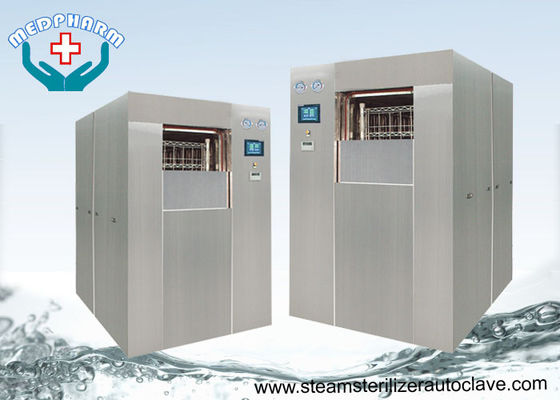

Thermally Insulated Lab Autoclave Sterilizer With Controlled Pressure Valve

China Thermally Insulated Lab Autoclave Sterilizer With Controlled Pressure Valve supplier

Large Image :  Thermally Insulated Lab Autoclave Sterilizer With Controlled Pressure Valve

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDB-0.45V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Door Type: Vertical Sliding Door Configuration: Compact
Chamber Volume: 450 Liter Material: 304 Stainless Steel Chamber And Jacket
Air Filter: 0.22 Micron Air Filter Key Feature: User Friendly Control Panel



Thermally insulated Laboratory Autoclave With Controlled pressure valve





Key Features



  • User friendly control panel
  • Frontal service door realized in one stainless steel AISI 304 panel
  • Height adjustable feet enabling an easy floor levelling of the autoclave
  • Possibility to have the technical area on the left or on the right side of the autoclave
  • Process piping made of stainless steel AISI 304 with tri-clamp fittings
  • High effective vacuum pump
  • Steam generator made of 304 stainless steel
  • Integrated thermal paper printer
  • Ergonomic working and loading position
  • 0.22 micron air filter
  • Automatic sliding door



Description



  • The MDB series of high temperature steam sterilizers (autoclaves) have horizontal chambers  with vertical sliding doors.
  • The chambers are fully jacketed over all four sides and back.
  • They are available in various sizes and configurations of materials, doors, vacuum systems,  steam generation, sterilizing cycles, recording systems, and loading equipment.



Specifications



Model

Chamber Size

Overall Size

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg/cycle

Kg/cycle

KVA

MDB-0.11V

400*400*700

1000*1800*1040

14

15

2

MDB-0.16V

400*400*1000

1000*1800*1340

16

20

2

MDB-0.20V

400*400*1300

1000*1800*1640

18

25

2

MDB-0.24V

600*600*670

1200*2000*1010

20

30

2

MDB-0.30V

600*600*840

1200*2000*1180

22

35

2

MDB-0.36V

600*600*1000

1200*2000*1340

25

40

2

MDB-0.45V

600*600*1250

1200*2000*1590

27

50

2

MDB-0.60V

600*600*1670

1200*2000*2010

30

60

3



Safety Construction



Chamber



  • The chambers are rectangular in design and jacketed. The chamber is quality stainless steel  with fully welded construction. Steam baffles are positioned in the chamber to minimize  wetting by condensate and ensure proper steam distribution within the chamber.
  • The chamber is mechanically polished to a 50 Ra. As option, the chamber can be polished to  a 25 Ra or a mirror finish with a Ra of 10u inch or better. This feature greatly enhances the  sanitary aspects of the chamber, as well as the clean ability, which translates into longer  lasting more aesthetically pleasing sterilizers.



Jacket



The jacket is constructed of 304 stainless steel.



Frame



The sterilizer chamber is secured to a structural frame. The frame is constructed of 304 stainless  steel. Adjustable screws at the base of the frame allow for leveling during installation.



Piping



All piping in contact with steam is made of stainless steel. Jacket and other service piping  is copper or brass. All plumbing fixtures and components are readily accessible and removable  without requiring major disassembly of the unit.



Technical Service And Support



Professional equipment installation, startup, and inservice support is available.



The sterilizer control system can be directly linked to service with a modem hook-up for software and hardware diagnostics and troubleshooting.



MEDPHARM’s expert field service organization is focused on planned maintenance and equipment service.



Thermally Insulated Lab Autoclave Sterilizer With Controlled Pressure Valve

Thermally Insulated Lab Autoclave Sterilizer With Controlled Pressure Valve

Thermally Insulated Lab Autoclave Sterilizer With Controlled Pressure Valve





Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
