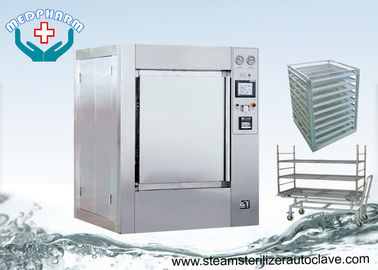

Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System

Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System
Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System

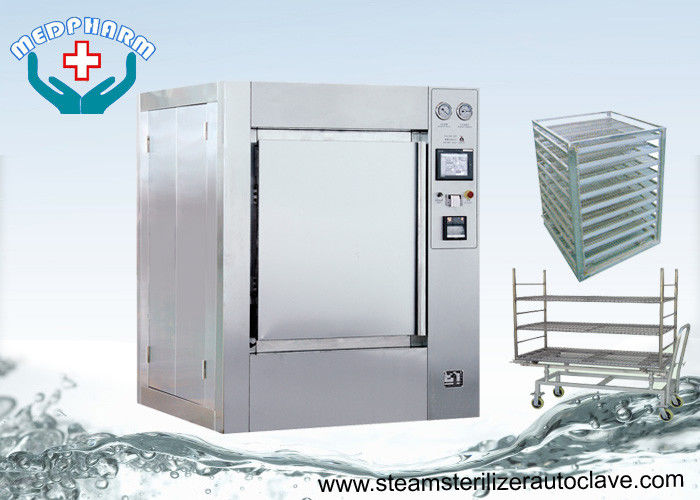

Large Image :  Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDR-0.8
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in plastic film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Standards:: CGMP Feature: Safety Piping Design
Test Program: Validation Port Display Panel: Color Touch Screen
Door Type: Motorized Hinge Door Application: Pharmaceutical Industry
High Light:

Medical Waste Autoclave

,

Healthcare Sterilizer


Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System

Quality Standards


  • cGMP
  • ISO 9001:2008 - Quality Management Systems
  • ISO 13485:2012 Quality Management System – Medical Devices


Steam Sterilizer Feature


  • Single or double door version and flexible load capacity
  • High quality chamber with fine polished of quality stainless steel
  • Extreme process reliability
  • User-friendly HMI
  • Parameters could be easy adjusted for perfect compliance with various customer requirements
  • Efficient drying based on a high performance vacuum system
  • Excellent ergonomics together with well-adapted accessories
  • Integrated automatic PLC control system with one key operation function



Specifications


Model

MDR-0.8

Door type

Motorized Hinge Door ,Single door or double door

Material (chamber and jacket)

SS304 / Steel

Chamber volume

800 liters

Chamber Size

61*91*145cm

Overall Size

150*190*179cm

Net Weight

1400kg

Steam

35Kg/cycle

Water

80Kg/cycle

Power(KVA)

3KVA

Testing programmes

Validation port

Sterilization items

Rubber plugs and Aluminum caps

Main adjustable parameters

Sterilization temperature rage: at 105°C to 134°C
Sterilization time rage: 0---99 minutes
Vacuum times: 0---9 times
Drying time: 0---99 minutes


Piping Design


  • Standard piping for the cGMP steam sterilizer utilizes SS304 sanitary orbital welded tubing and tri clamp connections for the chamber process piping (clean steam, air, and to first isolation valve in sterilizer drain). Standard internal finish for stainless steel piping is 180 grit polish.
  • A safety relief valve, sanitary rupture disk, and pressure switch for burst detection is provided for the chamber. Weld-in-place pneumatic piston globe valves are incorporated in the piping design to ensure urability and low maintenance. Care is taken in the fabrication of the pipework to insure deadlegs are minimized to less than 6:1 ratio and that the pipework is free-draining.
  • Carbon steel construction is used for the jacket piping and all non-process lines.
  • Steam traps are provided at low points in the piping system. A drain condenser is provided to reduce the chamber exhaust temperature to below 135oF to comply with all local plumbing codes. Process chamber and non-process drains are provided to allow re-cycling of the non process condensate to be directed back to user’s house boiler system.
  • A vacuum pump is provided as the means for air evacuation of the chamber. The vacuum pump is a close-coupled .
  • A 0.22 um disposable vent filter is provided as standard for air admission into the chamber. The option includes an independent sterilization cycle for the filter. The filter is installed in a 304 stainless steel housing.


Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System 0.Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System 1
Comply cGMP Regulations SS304 Chamber Large Steam Sterilizer With Safety Piping System 2


Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
