Hinge Door Pass Through Large Steam Sterilizer With Low Water Indication System

Name: Hinge Door Pass Through Large Steam Sterilizer With Low Water Indication System
Brand: Medpharm
SKU: MDL-0.8 to 8.0 etc
Price: 1.00 USD
Availability: InStock
Rating: 5 (170 reviews)

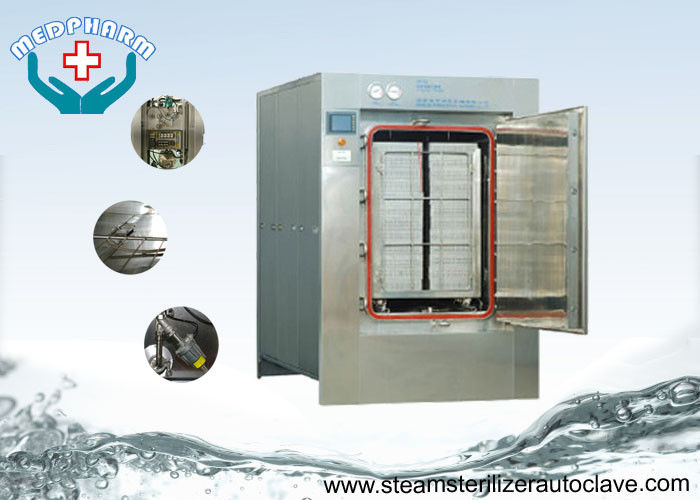

Large Image : Hinge Door Pass Through Large Steam Sterilizer With Low Water Indication System

Product Details:

Place of Origin:	China
Brand Name:	Medpharm
Certification:	CE
Model Number:	MDL-0.8 to 8.0 etc

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Packed in plastic film firstly,and then reinforced with wooden case for outer packing
Delivery Time:	35 working days after received your payment
Payment Terms:	T/T in advance, LC AT SIGHT
Supply Ability:	10 pcs per month

Contact Now

Detailed Product Description

Configuration:	Pass Through	Chamber Volume:	0.8m³ To 8m³
Cooling System:	Optional	Air Filter:	0.22 Micron Filter
Door Type:	Automatic Hinge Door	Application:	Laboratory
High Light:	Steam Autoclave Sterilizer , Healthcare Sterilizer

Hinge Door Pass Through Large Steam Sterilizer With Low Water Indication System

Key Features

Chamber volume from 800 to 8000 Liters
User-friendly HMI
Thermal sterilization treatment sterilizes all effluent and waste liquid
Double or single filtration systems ensure air is decontaminated before discharge
Double door pass-through autoclave
Autoclave chamber, piping and fittings are made from 304 stainless steel
Interlocks protect against passage of contaminated materials
Bio-shield barrier hermetically seals between the differently qualified zones
Double door pass-through autoclave
Hinge door with automatic locking
Minimal media consumption
SIP and integrity testing port

Description

In today’s society the need for safe bio-containment systems is increasingly important. This is especially true in the sterilization process where standard autoclaves cannot deal with the threat posed by harmful pathogens and other contaminated materials that are emitted from BSL3/4 laboratories.

Specifications

Model	Chamber Size	Overall Size	Steam	Water	Power
Model	WHD mm	WHD mm	Kg/cycle	Kg/cycle	KVA
MDL-0.8	6109101450	150019001790	35	80	3
MDL-1.0	68011801250	160020001590	40	100	4
MDL-1.2	68011801500	160020001840	45	120	4
MDL-1.5	68011801870	160020002210	50	150	4.5
MDL-2.0	100012001700	200020002040	60	200	4.5
MDL-3.0	100015002000	200022002340	90	300	5
MDL-4.0	100015002670	200022003010	120	400	6
MDL-5.0	100015003340	200022003680	150	500	8
MDL-6.0	100015004000	200022004340	180	600	8
MDL-8.0	100015005340	200022005680	240	800	12

Quality Standards

ISO 9001: 2008 - Quality Management Systems
ISO 13485: 2003 - Quality Management Systems

Our Advantages

The Large Steam Sterilizer is designed to process laboratory animal caging systems and associated equipment. Developed with the sustainable laboratory in mind, the sterilizer incorporates several features to maximize productivity, provide flexibility, and ensure safety and reliability.

Productivity

Sizes range from 0.8 cubic meters to 8 cubic meters , allowing for a full range of load sizes

Flexibility

Full range of programs and options to manage vivariums and BSL 3 & 4 application
Decontamination Cycles using either 0.22 micron filter
Fully welded BioSeal suitable for BSL 3 & 4 applications

Reliability

304 stainless steel chamber construction with 304 Stainless Steel full jacket for long life and excellent performance
