Large Steam Sterilization Sterilizer With Door Safe System Used In Clinic and Hospital

China Large Steam Sterilization Sterilizer With  Door Safe System Used In Clinic and Hospital supplier

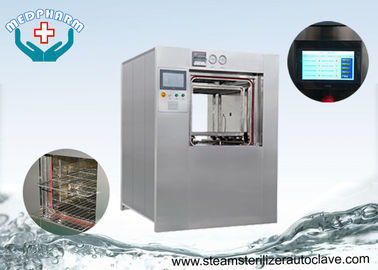

Large Image :  Large Steam Sterilization Sterilizer With Door Safe System Used In Clinic and Hospital

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-0.60V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in plastic firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
CONFIGURATION: FLOOR-STANDING APPLICATION: HOSPITALS
DOOR TYPE: VERTICAL SLIDING DOOR TEST PROGRAMS: BOWIE-DICK TEST ,VACUUM LEAK TEST
AIR FILTER: 0.22 µM BACTERIAL FILTER SAFE FEATURE: DOOR SAFETY LOCKING SYSTEM



Large Steam Sterilization Sterilizer With Door Safe System Used In Clinic and Hospital



Quick Details



  • Safe, Reliable And Economical
  • Chamber Volume 600 Liter
  • Microprocessor Control, Simple And Clear Operation
  • Wide Offer Of Sterilization Programs
  • Working Temperature: 105 °c To 134 °c



Applications



  • The large line of autoclaves serve as standard equipment in Laboratories, Hospitals,  Animal Care Centers, and High-Containment Facilities.
  • These models operate with saturated steam as the sterilization agent and incorporate  the same techniques as our other models.
  • Typical applications include glassware, cages, bedding, feed, and surgical  instruments.
  • The end user has the ability to select from a wide range of steam sterilization programs  and test cycles, meeting the needs of any marketplace.
  • The Bowie-Dick Test checks the effectiveness of removing air during the cycle
  • The Vacuum Leak Test checks the integrity of the chamber and piping system



Paramters



Model

MD-0.6V

Chamber volume

600L

Chamber Size

600*600*1670mm

Overall Size

1300*2000*2010mm

Net Weight

1100kg

Steam

30Kg/cycle

Water

60Kg/cycle

Power(KVA)

3KVA

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes

Testing cylces

Bowie & Dick test, vacuum test



Specifications



• Material : AISI 304
• Pneumatic  valves
• Calibrated manometers for vessel , jacket, generator and seal
• 0.22 µm %99.99 bacterial filter
• 3 seperately safety valve
• Magnetic pressure keys and temperature sensor in steam lines
• Water economy system
• Vacuum pump protecting system
• Electric pressure sensors

Monitoring Parameters

• Program name and number
• Sterilization phases
• Generator water level
• Vessel pressure and temperature, 2 sensors (optional)
• Jacket, generator and seal pressures (optional)
• Jacket and generator temperatures (optional)
• Total sterilization time and remaining time
• Sterilization pressure and temperature values
• Sterilization counter
• Real time and date
• Errors and error occasions



Door System



• Automatic sliding door
• Manual system for urgent cases
• Automatic open-close for sliding door systems
• Door safety locking
• Door closing safety





Large Steam Sterilization Sterilizer With  Door Safe System Used In Clinic and Hospital

Large Steam Sterilization Sterilizer With  Door Safe System Used In Clinic and Hospital





Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
