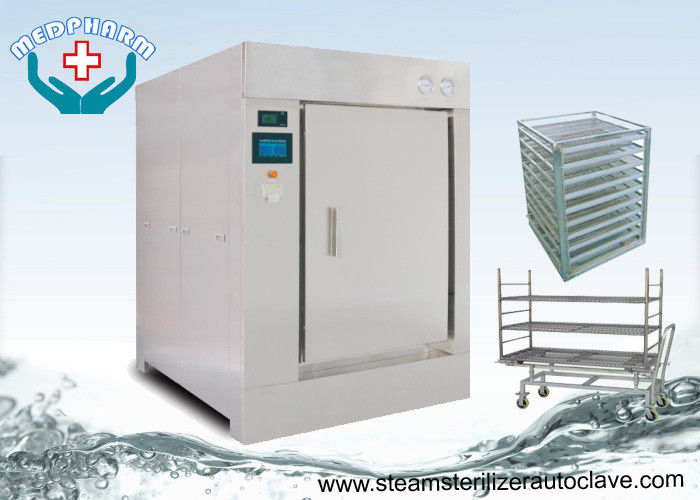

Big Touch Screen Interface Pass Through Autoclave 600 Liter For Pharmaceutical Industry

China Big Touch Screen Interface Pass Through Autoclave 600 Liter For Pharmaceutical Industry supplier

Large Image :  Big Touch Screen Interface Pass Through Autoclave 600 Liter For Pharmaceutical Industry

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDC-0.6

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Door Type: Motorized Hinge Door,Double Doors Application: Pharmaceutical Industry
Quality Standards: CGMP Sterilization Temperature: 105°c To 134°c
Vacuum Times: 0---9 Times Drying Time: 0---99 Minutes

Big Touch Screen Interface Pass Through Autoclave 600 Liter For Pharmaceutical Industry



Quality Standards



  • cGMP
  • ISO 9001:2008 - Quality Management Systems
  • ISO 13485:2012 Quality Management System – Medical Devices



Applications



This series steam autoclaves are designed and manufactured specially for sterilizing medical instruments, sterile clothing, dressings, vessels, apparatuses, operating tools, culture medium etc.



Specifications



Model

MDC-0.6

Door type

Motorized Hinge Door

Door number

Double doors

Vessel material

SS304 chamber and jacket

Chamber volume

600L

Chamber Size

610*910*1170mm

Overall Size

1350*1900*1510mm

Net Weight

1250kg

Steam

30Kg/cycle

Water

60Kg/cycle

Power(KVA)

3KVA

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes



Standard Features



  • 5.7" Multi-color touch screen.
  • Sterilization temperature range 105°C to 134°C.
  • 5 Operation access levels and up to 99 user accounts.
  • Over 1000 cycles & event data stored in internal memory (HTML and CSV).
  • Up to 100 cycle programs (customizable by user).
  • Cycle simulation (for testing cycles).
  • Easy file transfer via USB or LAN.
  • Micro-printer recorder.
  • Ethernet connection for remote monitoring, maintenance, and software updates.
  • Preventative maintenance notifications based on the number of cycles.



HMI Screen



  • On screen display of historical cycle data.
  • Graphical display of Temperature and Pressure trend graphs.
  • Multi-color display for easy reading.
  • Quick access to important information.
  • Multilingual support for over 20 languages.



Our advantages



Customer-specific solutions



Flexibility is our strength.



In addition to various standard solutions, we offer individual systems, tailored to the needs of the customer, which feature an extremely wide variety of chamber sizes and sterilization methods.



Our product line ranges from laboratory sterilizers with an effective volume of a few hundred liters

to large-scale sterilization systems with an effective volume of up to 40 M3



Extensive diversity of methodologies



The diversity of the materials to be sterilized requires adaptation of the ideal sterilization methods for the task. Medpharm offers the right methods and programs for every application field, and they can also be combined freely. They all have one thing in common: safe treatment of thematerials to be sterilized. We optimise the methods used depending on the requirements with regard to batch times,drying and temperature distribution.
