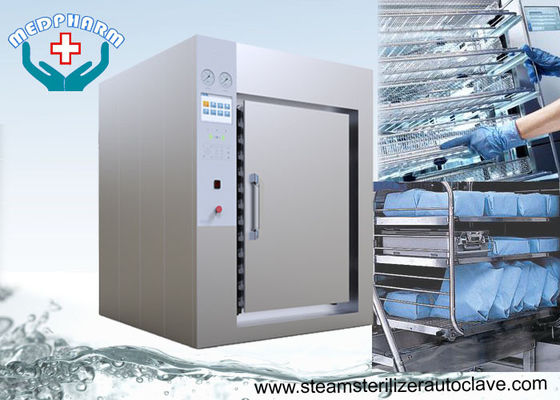

Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves

Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves
Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves

Large Image :  Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDB-0.8
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance/LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Door Type: Motorized Hinge Door Application: Pharmaceutical Industry
Printer: Built-In Printer Display Panel: 5.7" Colour Touch Screen
Chamber Volume: 800 Liters Chamber Material: 304 Stainless Steel
High Light:

Plasma Sterilization Equipment

,

superheated water spray sterilizer



Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves



Quick Details



  • Load capacity:800 liters
  • Fully stainless steel 304 material chamber and jacket
  • Hinged door with automatic locking device
  • 5.7" colour touch screen display
  • Pneumatic valves
  • Micro-printer recorder



Description



 Medpharm autoclaves are designed for a wide range of sterilizing applications suitable for the  laboratory or pharmaceutical industry. Quality materials and workmanship have been  incorporated into the chamber, piping and controls to provide a pharmaceutical sterilizer that  exceeds industry standards.



Specification



Model

MD-0.8

Door number

Single door

Door type

Motorized Hinge Door

Chamber volume

800 liters

Chamber Size

61*91*145cm

Overall Size

135*190*179cm

Net Weight

1400kg

Steam

35Kg/cycle

Water

80Kg/cycle

Power(KVA)

3KVA

Sterilization cycles

P01 – Rubber plugs 121°С – 25 min;

P02 – Aluminum caps 121°С –15 min;

P03 – Clothing  121°С –15 min;

P04 – Liquid  121°С –15 min;

P05 –Program with free parameters (temperature, time)

Test cycles

Validation port



Construction options



Control System Options

F0 Cycle: Calculates the sterilization time based
on load temperature and duration exposed. These
calculations are based on predetermined set
points. The result is controlled exposure time.

Load Probe: Used for temperature monitoring
that can be added through one of the included
validation ports.

Vessel Options

15 Ra. Polish: The internal chamber and door can
be polished to a 15 Ra. finish or better for critical
applications.

Chamber Passivation: An internal surface chamber
process that removes impurities inhibiting further
corrosion.

Piping Options

Sanitary Piping: 304 stainless steel, orbital
welding, sanitary piping, and process valves can
be added for high level sterilization.

Steam Source

Steam to Steam Generator: A heat exchanging
system used to create clean steam from a pure
water source and house steam or electric boiler
system. These systems are connected directly to
the chamber.

Process Options

Air Inlet Insitu Filter: An air inlet filter rated at 0.22
um. For use in high level sterilization.

Stainless Air Inlet Housing: A stainless steel
housing that allows the insitu filter to be sterilized.



The Medpharm Difference



1. Steam Sterilizers are Our Only Business – Proud to be the only major steam sterilizer

2. Manufacturer specializing in Steam Sterilizers

3. Innovation Designed and Manufactured

4. From Basic Sterilization to Hazardous Waste, to Validatable Pharmaceutical and Bio-Critical Applications

5.  “Making it one of the easiest in the industry to service”per our customers

6. Lowers the cost of ownership, minimizes down time and provides a more efficient meantime repair

7. 304 Stainless Steel Fully Jacketed Vessel (no laminates) – reduces heat-up time and loss of temperature, providing greater uniformity of chamber temperature

8. Rectangular Chamber - eliminating wasted space and high utility cost



Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves 0

























































































































Medium Steam Type Pharmaceutical Autoclave With Pneumatically Operated Process Valves 1



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
