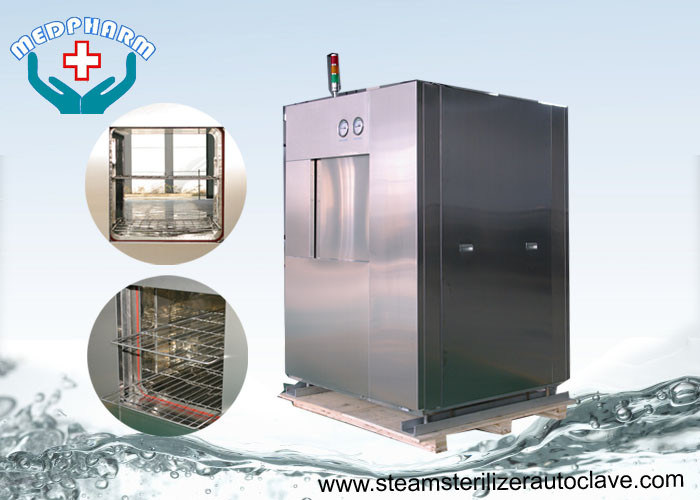

304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System

304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System
304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System

Large Image :  304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MDB-0.24V
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Door Type: Vertical Sliding Door Chamber Volume: 240 Liter
External Usb Connection: For Data Download Control System: User-Friendly PLC Control System
Chamber Material: 316L Stainless Steel Pressure Gauges: For Jacket, Chamber, Steam Generator
High Light:

Plasma Sterilization Equipment

,

superheated water spray sterilizer


304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System

Product Characteristics

- Chamber material and pipe work 316L stainless steel
- Fully jacketed chamber,Rectangular chamber
- Vertical opening doors
- PLC control with user-friendly HMI
- 5.7” high resolution color touch screen
- External USB connection for data download (on loading side)
- Built-in printer on loading side
- Independent temperature probe (chamber)
- Pneumatic valves
- 0.22 Micron Air filter
- Pressure gauges for jacket, chamber, steam generator (loading side), chamber (unloading side)
- Water level indicator for steam generator
- Safety temperature switch for door opening
- Doors equipped with safety bumper for workers safety
- Acoustic signal for end cycle and alarms
- Programmable timer start for test cycles
- Sanitary piping with Tri-clamp


Description

cGMP Pharmaceutical autoclave with fully automatic sliding doors designed to conform to
end-user requirements using steam as the sterilizing agent, appropriate for pharma production
and quality assurance processes. The autoclave chamber volume is 240 liters.

Specifications


Model

MD-0.24V

Door number

single or double door(s)

Door type

Vertical sliding door

Chamber  and jacket material

SS316L / SS304

Chamber volume

240 liters

Chamber Size

600*600*670mm

Overall Size

1350*1800*1010mm

Net Weight

700kg

Steam

20Kg/cycle

Water

30Kg/cycle

Power(KVA)

2KVA+18Kw for generator

Sterilization temperature rage

105°C to 134°C

Sterilization time rage

 0---99 minutes

Vacuum times

 0---9 times

Drying time

 0---99 minutes



User- friendly HMI
The Human Machine Interface (HMI) has been designed with the following considerations



  • Multi-color display for easy reading
  • Easy operation
  • Quick access to important information
  • Multiple languages
  • Built-in view of historical cycle data
  • Graphical display of Temperature and Pressure trend graphs


Quality Standards


  • cGMP
  • ISO 9001:2008 - Quality Management Systems
  • ISO 13485: 2012 Quality Management System


304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System 0

304 Material Chamber Pharmaceutical Autoclave With User Friendly PLC Control System 1

Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
