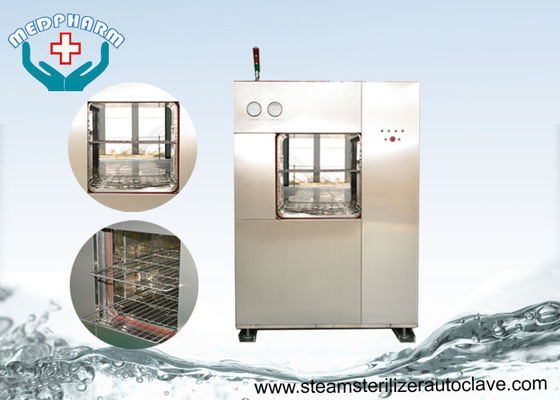

Vertical Sliding Pharmaceutical Autoclave With Wide Loading Accessories

China Vertical Sliding Pharmaceutical Autoclave With Wide Loading Accessories supplier

Large Image :  Vertical Sliding Pharmaceutical Autoclave With Wide Loading Accessories

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE
Model Number: MD-V series

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Door Type: Vertical Sliding Door Configuration: Floor-Standing
Control System: User-Friendly HMI Chamber And Jacket Material: 304 Stainless Steel
Operation Panel: Touch Screen Feature: Deliverable Documentation



Vertical Sliding Pharmaceutical Autoclave With Wide Loading Accessories



Model Chart



Model

Chamber Size

Overall Size

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg/cycle

Kg/cycle

KVA

MDB-0.11V

400*400*700

1000*1800*1040

14

15

2

MDB-0.16V

400*400*1000

1000*1800*1340

16

20

2

MDB-0.20V

400*400*1300

1000*1800*1640

18

25

2

MDB-0.24V

600*600*670

1200*2000*1010

20

30

2

MDB-0.30V

600*600*840

1200*2000*1180

22

35

2

MDB-0.36V

600*600*1000

1200*2000*1340

25

40

2

MDB-0.45V

600*600*1250

1200*2000*1590

27

50

2

MDB-0.60V

600*600*1670

1200*2000*2010

30

60

3




Documentation



  • An built-in printer, prints the date, program selected and parameters of the program, at the start. Then, the time, temperature and pressure is recorded periodically.
  • An independent electronic paperless recorder can be adapted; to record chamber temperature and pressures.
  • Our sterilizers have the archive program for the purpose of validation applications.
  • The date, time, name of the user, lot number of the containers or the packages of the sterilization process can be stored for years in case of necessity. These data can be searched, sorted and printed out by the user.
  • Bar-coding applications can be realized as well.



Automatic Command And Control



Automatic unit controls all the sterilization process and parameters with an industrial type of microprocessor, namely PLC. It has the international standards and approvals with its high quality. For updating the programs, it is possible to be online with the PLC and to download new programs from the Medpharm center.



Automatic Control Display



Different types of display can be used in the system, in order to get automatic command and control. The display can be LCD with touch screen display or it can be even a graphical LCD display. All types of display have also the international standards with its high quality.



Operator Panel



The operator panel is a touch screen. Program parameters and cycle information is displayed on the panel. Program selection, start, interruption and manual control is achieved by using a touch panel. They have internationally accepted approvals and high quality.



Printer


The printer is heat and humidity resistant. It records all the sterilization process and parameters. The printer is a panel type printer and can be assembled easily to the sterilizer.



Steam Generator



The integrated steam generator is designed to supply necessary saturated steam for the sterilizers. The Pressure is controlled electronically by a pressure transmitter and checked by a pressure switch for safety.






Vertical Sliding Pharmaceutical Autoclave With Wide Loading Accessories

Vertical Sliding Pharmaceutical Autoclave With Wide Loading Accessories



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
