Bulk Veterinary Autoclave With Integrated Micro Computer Controlled For Animal Cages

China Bulk Veterinary Autoclave With Integrated Micro Computer Controlled For Animal Cages supplier

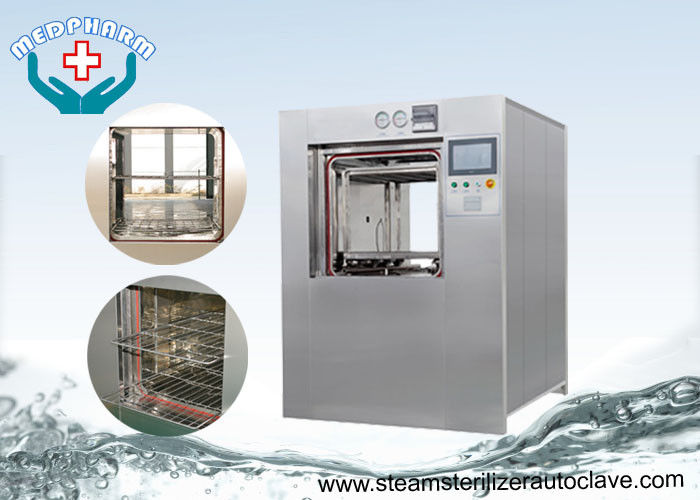

Large Image :  Bulk Veterinary Autoclave With Integrated Micro Computer Controlled For Animal Cages

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-V series

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Product Name: Large Steam Autoclave Operation Interface: PLC
Safety Valve: Integral To The Plumbing Door Open: By Motor
Door Close: Electric Door Switch Sterilization Cycle: B-D Test, Liquid, Solid,
Sterilization Results: F0 Value Air Filter: Accuracy 0.22um



Bulk Veterinary Autoclave With Integrated Micro Computer Controlled For Animal Cages



Brief



Medpharm V series sterilizers are designed for sterilization of materials used in healthcare facilities, veterinay laboratory and veterinay pharmaceutical factory. It uses steam as sterilization medium and is designed for fast, efficient sterilization of heat and moisture stable materials and immediate use. It is equipped with pre-vacuum, gravity, leak test and daily air removal test cycle.



Features



The chamber is rectangular chambers eliminate the wasted space and vertical door occupies

less floor space and provides greater capacity. The door is fully automatic in operation and is

raised and lowered by motor. Door operation is controlled via pushing buttons on the control

panel then the door is sealed automatically.



Door safety



Electric door switch ensures the door is fully closed and locked prior to the cycle start. Cycles

can't start until the door(s) are fully closed and locked. The door can’t be open during cycles or

pressure in the chamber exceeds 0.15 bar.



The electro-mechanical lock on each door minimizes the chance of cross-contamination

between contained and uncontained areas by preventing both doors from being operated

simultaneously.



The gasket is strong pressed against the rear face of the door by compressed air at the beginning and at the end of the process, the gasket is retraced by vacuum and the door on the unloading side is opened by motor with gear.



Chamber and Jacket



  • Chamber vessel is made according to GB150-2011 and GB8599-2008.
  • Chamber and jacket are made from solid stainless steel. Internal surfaces are treated with glass blasting to facilitate cleaning.
  • Chamber is completely insulated with 30-80mm mineral wool and mounted on stainless steel framework with adjustable feet.
  • The vessel provided validation connections for temperature test sensors on the left sides.



Control System

  1. Operator intuitive 5.7" color touch screen display
  2. Three levels of user login security
  3. Pre-programmed cycle types

Cycles



Cycle Name

Program preset details

 Sterile products for reference

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

instruments with narrow tube, Filters, Biology glassware, dental instruments, disassembled filter housings, animal cages

Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

lab coats, hospital bedding, gauze

Liquid

15 min exchange, expose temperature 121℃, expose time 15 min, cooling time 25 min.

Medicine powders, mushroom substrate, cultures, vaccine,

ampoules and vials

B-D Test

3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

B-D package

Vacuum Leakage Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

Test air leakage. Start before sterilization cycle.

User Programmable

 All preset parameters can be reset; Multiple customized programs can be set and stored by user.

Defined by customers special requests besides the preset programs.















































  • Custom cycle name for easy recognition and at least 15 stored programmable custom cycles
  • F0 cycle sterilization result output
  • Help screens and alarms
  • Network or USB data download ports



Printer



  • Integrated into main control panel with heat sensitive printer.
  • Print information: Operator identification code, cycle type, cycle stage, time, chamber and jacket pressure and/or temperature,alarms or messages and cycle completion status.



Bulk Veterinary Autoclave With Integrated Micro Computer Controlled For Animal Cages

Bulk Veterinary Autoclave With Integrated Micro Computer Controlled For Animal Cages



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
