Horizontal Sliding Door 1500 Liters Stainless Steel Pass Through Sterilization Cycle Autoclave

China Horizontal Sliding Door 1500 Liters Stainless Steel Pass Through Sterilization Cycle Autoclave supplier

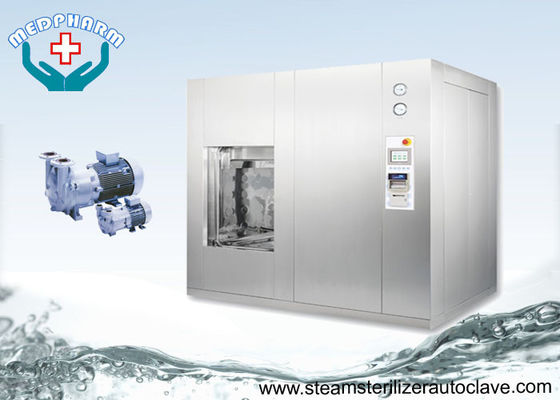

Large Image :  Horizontal Sliding Door 1500 Liters Stainless Steel Pass Through Sterilization Cycle Autoclave

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-Y series

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Product Name: Pass Through Autoclave Chamber Volume Liter: 800 To 8000 Liters
Service Compressed Air Peak Load-cfm Pressure-kg/cm2: 8 8 Vacuum Pump Power-Hp: 5
Total Power-kw: 6 DM Water For Rapid Cooling Pressure-kg/cm2: 3 336



Horizontal Sliding Door 1500 Liters Stainless Steel Pass Through Sterilization Cycle Autoclave



Application



Pass through steam sterilization offers a wide range of application and is mainly used in the harmaceutical and biotechnology industries. Main application can be sterilization of

- Porous load, stainless steel instruments, empty bottles, vials and plastic containers, filters

and stoppers.

- Solution in Glass container like ampoules, vials and bottles

- Terminal sterilization of ampoules and bottles

- Sterilization of IV, Fluids in PVC pouches



Main Parameters



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.8Y

680*1180*1000

2200*2000*1410

1480

35

280

3

MD-1.0Y

680*1180*1250

2200*2000*1660

1630

40

300

4

MD-1.2Y

680*1180*1500

2200*2000*1910

2030

45

320

4

MD-1.5Y

680*1180*1870

2200*2000*2280

2230

50

350

4.5

MD-2.0Y

1000*1200*1700

2800*2000*2110

2490

60

400

4.5

MD-3.0Y

1000*1500*2000

2800*2200*2410

3050

90

500

5

MD-4.0Y

1000*1500*2670

2800*2200*3080

3700

120

600

6

MD-5.0Y

1000*1500*3340

2800*2200*3750

4600

150

700

8

MD-6.0Y

1000*1500*4000

2800*2200*4410

5400

180

800

8

MD-8.0Y

1000*1500*5340

2800*2200*5750

7000

240

1000

12



Features



  • Operating Temperature and pressure:
    – Sterilizing Temp. : 121°C.
    – Sterilizing Pressure : 1.2 to 1.5 kg/Cm2, (15 psi to 22 psi)
  • The Chamber bottom, particle filters and strainers are easy to clean. Vacuum piping has a filter preventing bedding from being sucked in.
  • PLC validation as per 21CFR part 11
  • Dimple jacket of 316L provided for enhanced/uniform and temperature distribution (within±1℃) during the sterilization phase.
  • Multiple validation ports
  • Bioseal: A biological safety barrier separates the sterile and non-sterile zone.
  • Integrated sterile section with isolator.
  • Trays, carriage and floor trolleys provided.
  • Pneumatically operated sliding doors with safety interlocks.
  • Dedicated after sales service with well trained technicians.



Competitive Advantage



Our pass through autoclave has been engineered to meet the stringent manufacturing standards like cGMP being followed by the pharmaceutical & bio-tech industries, medpharm believes in total customer satisfaction and control in quality in production in accordance with GAMP and ISO guidelines &provide DQ,OQ,IQ enables customer standards.





Horizontal Sliding Door 1500 Liters Stainless Steel Pass Through Sterilization Cycle Autoclave

Horizontal Sliding Door 1500 Liters Stainless Steel Pass Through Sterilization Cycle Autoclave



Brochure load down from here



Medpharm medical large steam autoclave brochure.pdf
