Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions

Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions
Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions

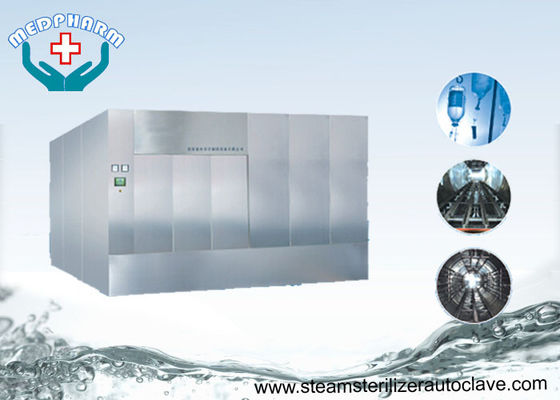

Large Image :  Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: SYP series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Sterilization Media: Super Heated Sterilization Method: Spray
Loading: By Roller System Heat Exchange: Stainless Steel For Heating And Cooling
Door Type: Horizontal Sliding Door Sterilization Principle: Counter Pressure
Compliance: CGMP Application: Plastic Bottles Infusion
High Light:

Steam Sterilization Machine

,

Moist Heat Sterilization Autoclave

Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions


Application



This Series sterilizers are mainly used in sterilizing for plastic bottle packing infusion solutions.

Using superheated pure water as the sterilization agent, the plastic bottle solutions will be heated quickly, and the temperature in the chamber is uniformly distributed during the cycle because of the water showering continuously.

Quality system

* cGMP Standard
* ISO 9001 quality system
* GB-150 and China relative standards.

Safety system

* Overpressure protection
* Safety interlock system
* Overloading and short circuit protection

Chamber

● Horizontal cylinder or rectangle square chamber, made of SS 304, finely polished, insulated with mineral material ensuring least heat emitting
● Horizontal-sliding door (for large volume chamber as usual) or motorized hinge door (for small volume chamber as usual), driven by electric motor and sealed by compressed air
● Equipped GMP validation joint

Control System

* PLC, Touch screen, Printer. Temperature, pressure, F0 value etc can be controlled, recorded or stored at any time.
* Computer monitoring system background in central control room or at site

Parameters


Model Chamber Size Overall Size Net Weight Steam Water Power
Ø*D mm W*H*D mm Kg Kg/cycle Kg/cycle KVA
SYP-10 Ø2000*3160 4100*2600*3680 7000 650 700 15
SYP-14 Ø2000*4260 4100*2600*4780 8000 800 1220 15
SYP-17 Ø2000*5260 4100*2600*5780 9000 1000 1440 19
SYP-22 Ø2000*6790 4100*2600*7310 11000 1200 1920 22
SYP-31 Ø2000*9860 4100*2600*10380 14500 1700 2400 40
SYP-35 Ø2000*10980 4100*2600*11500 16000 1850 2880 45
SYP-40 Ø2500*8360 5200*3200*8900 19000 2100 3600 60


Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions 0Super Heated Hot Water Spray Pass Through Autoclave For IV Solutions 1



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
