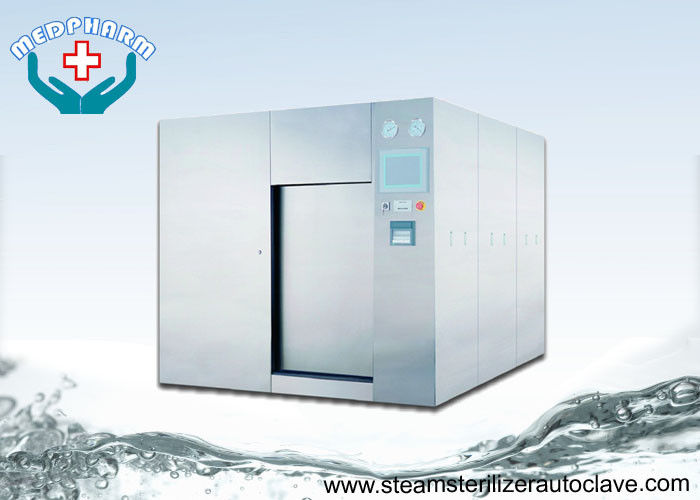

Bio-contaminated CSSD Sterilizer With Several Steam And Vacuum Pulses

Bio-contaminated CSSD Sterilizer With  Several Steam And Vacuum Pulses
Bio-contaminated CSSD Sterilizer With  Several Steam And Vacuum Pulses

Large Image :  Bio-contaminated CSSD Sterilizer With Several Steam And Vacuum Pulses

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-0.8Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Product Name: CSSD Sterilizer Size Of Chamber: 800 Liters
Doors: Double Door Sealing Type: Safety Mutual Lock
Applied Field: CSSD Center Door Type: Pass Through Double Door
Material: SS 304 Chamber And Carbon Jacket Pulse Vacuum: Three Times Or More
High Light:

cssd hospital equipment

,

sterilization equipment for hospital



Bio-contaminated CSSD Sterilizer With Several Steam And Vacuum Pulses

Specifications



  1. MD-0.8Y CSSD sterilizer outside size (W*H*D): 220*200*141cm
  2. Inside chamber size (W*H*D):68*118*100cm
  3. Net weight: 1480kg
  4. Power: 3KVA, AC380v,50Hz, three phases
  5. Water: 80kg/cycle, softened water, hardness <50ppm/pH Neutral 0.15-0.3Mpa
  6. Steam: 35kg/cycle, saturated steam from external steam pipes 0.4-0.7Mpa
  7. Compressed air: Oil free air pressure 0.5-0.8MPa



Main Parameters of our standard model sterilizer for selection



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.8Y

680*1180*1000

2200*2000*1410

1480

35

80

3

MD-1.0Y

680*1180*1250

2200*2000*1660

1630

40

100

4

MD-1.2Y

680*1180*1500

2200*2000*1910

2030

45

120

4

MD-1.5Y

680*1180*1870

2200*2000*2280

2230

50

150

4.5

MD-2.0Y

1000*1200*1700

2800*2000*2110

2490

60

200

4.5

MD-3.0Y

1000*1500*2000

2800*2200*2410

3050

90

300

5

MD-4.0Y

1000*1500*2670

2800*2200*3080

3700

120

400

6

MD-5.0Y

1000*1500*3340

2800*2200*3750

4600

150

500

8

MD-6.0Y

1000*1500*4000

2800*2200*4410

5400

180

600

8

MD-8.0Y

1000*1500*5340

2800*2200*5750

7000

240

800

12


Description

◘ Preset with 6 programs for wrapped item, unwrapped instrument, liquid, B&D test and free setting.
◘ Horizontal sliding door is used for easy operation. Manual operation is available in case of
 electric failure.
◘ Silicone rubber gasket is used for airtight sealing.
◘ Open instrument can be flash sterilized in 3 minutes while wrapped items can be sterilized in 10
minutes at 134℃.
◘ LCD touch control screen: 5.7” to display date, temperature, pressure, cycle stages and course
of time against pressure and temperature.
◘ Automatic pressure control system for pressure and vacuum setting which accuracy is
   between 0.1psi.
◘ Printer system is used for the record of sterilizing time, sterilizing No., cycle No.,
operator No., temperature set, time set, pressure/vacuum set, maximum & lowest temperature,
actual heating, sterilizing and drying time, total  time used and time of open door etc... In case of
out of printing paper, the cycle proceeding will keep on. Heat-sensitive printing paper is used to
print out 19bps ,and there is no ink need.
◘ Inlet air filter cartridge is used for 0.2μm air purge.

Safety devices

A. Cycle will not start in case door is not locked properly.
B. Door can not be opened in case chamber is under pressure.
C. Door mounted with anti-clamp system, door will stop sliding in case foreign object is interrupted.
D. Jacket installed with a safety valve to relief overloaded pressure.
E. LCD control screen displays the malfunction such as low water, steam insufficient, air
    insufficient and etc.
F. Piping self-detect system alarms at pressure lose more than 1mmHg per minute.
G. Cycles hold in case of power failure.
H. Parameter of programs can be locked by security code.

Applications

CSSD center for garments, machine parts, machine accessories, containers.Culture media,
laboratory waste.

 Bio-contaminated CSSD Sterilizer With  Several Steam And Vacuum Pulses 0
Bio-contaminated CSSD Sterilizer With  Several Steam And Vacuum Pulses 1

Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
