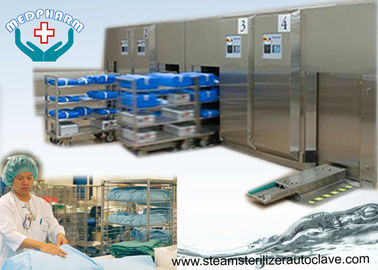

Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated

Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated
Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated

Large Image :  Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-0.8Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Product Name: Autoclave Sterilizer Machine Volume Of Chamber: 800 Liters
Doors: Single Door Loading And Unloading Trolley: 1 Units
Transfer Trolley: 1 Unit Program Quantity: 6 Programs
Installation: Horizontal Sliding Door Air Filter: 0.22 Micron
High Light:

auto clave machine

,

sterile medical equipment



Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated



Specifications



1. Sanitary stainless steel piping

2. Cross-contamination or gas-tight barrier (Bioseal)

3. Own control system, specially developed for sterilization applications (choice of world-leading PLC brands)

4. Manufactured according to intended application guidelines/standards and country of installation

5. Project handling and products in line with current regulations and guidelines, e.g. cGMP, etc.



Program Parameter



Cycle name

Further details

Application

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

Solid materials to be sterilized:

●Packaged instruments

●Empty glass containers

●Empty metal containers

Porous materials to be sterilized:

●Rubber articles

Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

Materials to be sterilized from which air can’t be easily displaced

●Textile

User Programmable

All preset parameters can be reset; Multiple customized programs can be set and stored by user.

Customized

Test programs

B-D Test

3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

Test program

Vacuum Leak Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

Test program



Description



Autoclave sterilizer machine sterilization relies on three (3) parameters to eliminate microbes

and organisms: Time, temperature, and pressure. And these parameters can be manipulated

into different cycle recipes to sterilize various types of loads. However, the cycle requirement for

every load type—such as red bags, media, glassware, cages, animal bedding, and pipette

tips—can vary significantly.



While the vast majority of common pharmacy and laboratory loads can be sterilized with one of

the following three (3) basic cycles: Gravity, Vacuum (or Prevac), and Liquids; it is important to

ensure that your sterilizer offers the cycles appropriate for all of your load requirements.



Clients will be of particular interest to labs that are expanding their research capabilities to mice

and rats, and need to upgrade their current sterilizer to one that can easily accommodate

cages and waste.



Some of the key available options include:

Pass-thru configuration: Ideal for BSL-3 labs, the pass-thru option allows for movement of

materials between the contained decontamination area and the clean processing area.



Loading cart and transfer carriage: The loading cart is mounted on rollers, with two stainless steel

shelves and a wheeled transfer carriage. The transfer carriage mates to interior guide rails to

ease loading and unloading of sterilization loads up to 500 lbs. evenly distributed.



Bioseal: For Biological Safety Level 3 installations a Bioseal can be installed to maintain the

contamination integrity of the clean side. Utilities can be mounted at the non-contained side

of the installation and in the front, rear or designated side of the cabinet.



Dual Controls: For pass-thru models equipped with the controller. A 6” color touchscreen with

full operator and service functionality is provided at each end of the sterilizer to allow operation

from both sides. Printer is located outside the containment area unless otherwise specified.



Applications



BioPharma Series Sterilizers provide steam sterilization for components and equipment as well

as for container closures such as rubber stoppers and plungers which are vital to parenteral packaging.



Programming for many applications including stopper processing, which generally clean, sterility and drying of these products that are a functional part of the drug administration system.



Advantage



  1. Strong on safety
  2. Leading-edge construction
  3. Advantage of sliding door
  4. Numerous design options



Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated 0

Strip Chart Recorder Autoclave Sterilizer Machine With Fault Identifications Incorportated 1





Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
