Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave

China Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave supplier
Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave supplier Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave supplier

Large Image :  Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-3.0Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Product Name: Pharmaceutical Sterilizer Size Of Chamber: 3 M3
Doors: Single Door Automatic Process Control: PLC
Construction: 304 Chamber And 304 Jacket Program Quantity: 6 Programs
Safety Feature: Safety Union Lock Exporting Port: Shanghai



Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave


Main Parameters


Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.8Y

680*1180*1000

2200*2000*1410

1480

35

80

3

MD-1.0Y

680*1180*1250

2200*2000*1660

1630

40

100

4

MD-1.2Y

680*1180*1500

2200*2000*1910

2030

45

120

4

MD-1.5Y

680*1180*1870

2200*2000*2280

2230

50

150

4.5

MD-2.0Y

1000*1200*1700

2800*2000*2110

2490

60

200

4.5

MD-3.0Y

1000*1500*2000

2800*2200*2410

3050

90

300

5

MD-4.0Y

1000*1500*2670

2800*2200*3080

3700

120

400

6

MD-5.0Y

1000*1500*3340

2800*2200*3750

4600

150

500

8

MD-6.0Y

1000*1500*4000

2800*2200*4410

5400

180

600

8

MD-8.0Y

1000*1500*5340

2800*2200*5750

7000

240

800

12


Application


Medpharm Sterilizers are ideal for Hospitals, Research Laboratory and other Pharmaceutical
Industry.They are designed for safe & efficient sterilization of various items such as Ampoules & Vials, Rubber goods, empty flasks, instruments & utensils, Fabrics wrapped or unwrapped, etc.

Chamber


The chamber is constructed of heavy duty stainless steel 304 to with stand pressure of 2.2 Kg/cm2 corresponding to temperature of 134℃ and also to with stand vacuum of 650-700 mm (26"/28") of Hg in Chamber.Two rails are provided in the chamber bottom for easy loading & unloading of the material on Carriage.

Door


The Sterilizer is supplied with single door or double doors made of 304 S .S. The doors are having automatic sliding type arrangement to open them manually in case of power failure.
The door Gasket will be of Silicon Rubber.

Features


A special provision prevents the operator from opening the door in following events:-

  • When the chamber is under pressure
  • Vacuum Breaker.
  • Heavy duty safety valves


Steam Supply


The Sterilizer is operated by steam supplied from the central boiler.

Steam pressure: 0.4---0.8MPa

Vacuum system


This system is used for effective air removal from Autoclave chamber. It consists of efficient of
water-ring type vacuum pump, condenser etc.

Control system



The control unit is based on advance PLC or Microprocessor technology. This unit control
different sterilization cycles with the help of in -built different program combinations. Control
unit is provided with manual operation facility.

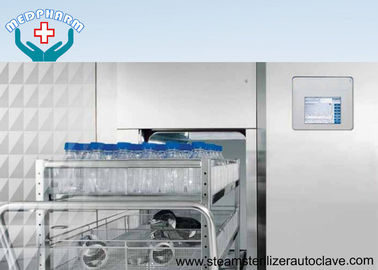

Carriage & Trolley


The loading carriage is made of stainless steel 304. And it has adjustable shelves which
can be positioned according to Height of the goods. It is designed to slide easily from
chamber to trolley.The trolley is made of S.S.lM.S. and its base has four heavy duty castors.

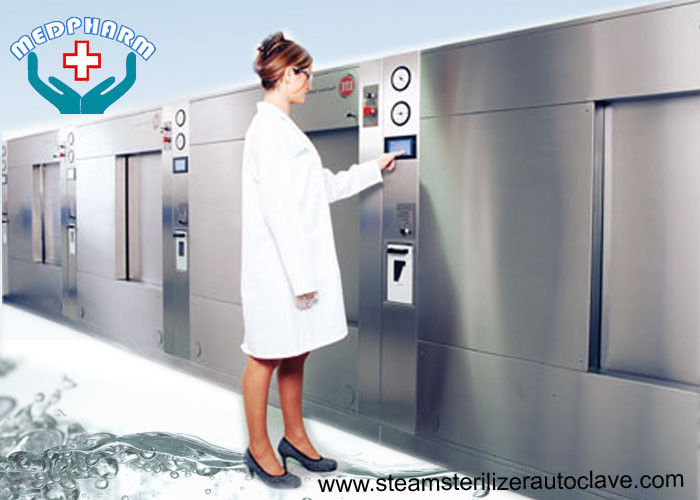

Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave
Pit Mounted For Direct Floor Loading Horizontal Pharmaceutical Steam Autoclave


Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
