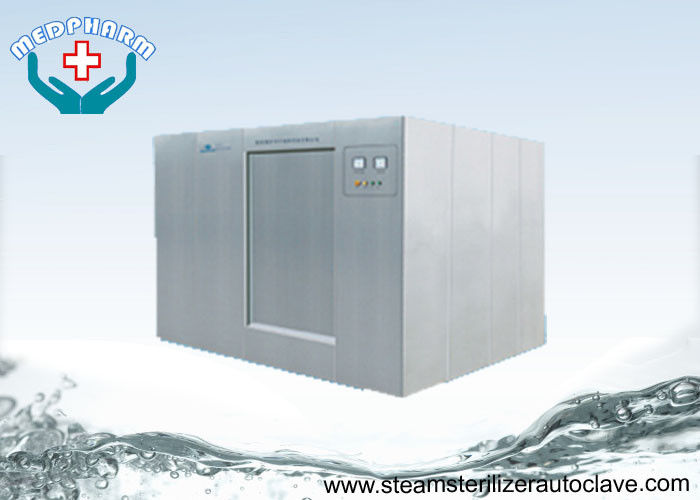

1200 Liter Large Steam Sterilizer With Safety Valves In Jacket and Chamber

1200 Liter Large Steam Sterilizer With Safety Valves In Jacket and Chamber
1200 Liter Large Steam Sterilizer With Safety Valves In Jacket and Chamber

Large Image :  1200 Liter Large Steam Sterilizer With Safety Valves In Jacket and Chamber

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-1.2Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 35 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Product Name: Medical Autoclave Sterilizer Design Pressure: 0.3Mpa
Chamber Material: SS304 Material Jacket Material: SS304 Material
Power: AC 380V,3ψ,50Hz Water: 1~3kg/cm3
Steam: 4~5kg/cm3 Air: 4~5kg/cm3
High Light:

Steam Autoclave Sterilizer

,

Healthcare Sterilizer



1200 Liter Large Steam Sterilizer With Safety Valves In Jacket And Chamber

Specification



Model No

MD-1.2Y

Chamber dimensions

mm

680*1180*1500

Overall dimensions

mm

2200*2000*1910

Inner capacity

L

1200

Door operation

AUTO

Horizontal single sliding

Setting range time

min

0~99

Setting range temperature

110~135

Controller

Panel

Touch screen

System

PLC

Display

5.7" Touch Screen

Version

Chinese/English/Spanish/Thai

Output interface

RS-232

Vacuum

Drawing

Vacuum pump

Printer

Paper

Heat sensitive type with auto rolling back

Accessories

Trolley

1 set of floor-Loading carriage

Printer paper

2 rolls

Manual

1 copy of operation and maintenance manual



Program Parameter


Cycle name

Further details

Application

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

Solid materials to be sterilized:
●Packaged instruments
●Empty glass containers
●Empty metal containers
Porous materials to be sterilized:
●Rubber articles

Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

Materials to be sterilized from which air can’t be easily displaced
●Textile

User Programmable

All preset parameters can be reset; Multiple customized programs can be set and stored by user.

Customized

Test programs

B-D Test

3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

Test program

Vacuum Leakage Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

Test program






Description of sterilization cycle


Pre-Vacuum Cycle - pre-conditioning of load during air removal using programmable ramped
positive and negative pressure pulsing to remove entrapped air. Programmable ramped vacuum
drying.



Micro Isolator Cycle - pre-vacuum cycle using programmable, ramped, positive and negative pressure pulsing to reduce internal and external crazing of animal housing by allowing pressure stabilization to product items being processed.

Test Cycles Leak Test - programmable vacuum leak test to verify door seal, sterilizer chambe
r and piping integrity through monitoring of acceptable vacuum loss over selected time.



Autoclave air removal test - pre-programmed vacuum cycle used to verify removal of residual air from
chamber and load, and ensure steam penetration into the test load.

Bio-Waste Cycle - designed for pre-sterilization conditioning through positive and negative pressurization to ensure air removal from mixed products in containers. Programmable ramped steam pressurization is used to maximize heat penetration of mixed laboratory biohazard waste.

F0 Temperature Control Cycle - for the sterilization of heat sensitive materials using time-at-temperature calculations beginning at a predetermined point of the conditioning phase. This reduces the product exposure to higher temperatures normally found in standard sterilization cycles.

Gravity Cycle - for non-air retentive products; utilizes positive steam pressure with vacuum assist air removal for conditioning of load. The end of cycle exhaust is programmable for dry and non-dry phases

Liquid Cycles Liquid Cycle - cycle used for liquids in vented borosilicate glass or metal containers. Positive steam pressure with vacuum assisted air removal with programmable ramped heating and exhaust to ambient with optional cooling phase.

Liquid, Air Cool Cycle - cycle used for liquids in vented borosilicate glass or metal containers
. Positive steam pressure with vacuum assisted air removal with programmable ramped
heating and introduction of filtered air during exhuast to speed cooling.

Pre-Vacuum Liquid Cycle - pre-conditioning of load using programmable, ramped, positive
and negative pressure pulsing to assist in removal of entrapped air. Chamber temperatures
at negative pressures are controlled to prevent boiling of product. Controlled ramped exhaust
to ambient with optional cooling phase.

Effluent - for the processing of items in BSL3 and BSL4 laboratories. The cycle uses a heated,
jacketed, 0.2 micron hydrophobic filter to contain biohazard contents in sterilizer chamber
while allowing exhaust of sterile gasses.


Advantages


Reliability - Industrial grade valves and high temperature gaskets prevent otherwise costly
and common service downtime. The vessel is tested and certified to exceed national pressure
vessel standards and carries a manufacturer’s warranty.

Safety - Operator and technician safety is ensured through temperature and pressure monitoring,
relief valves, safety interlocks overrides.

Serviceability - Reduce costly maintenance downtime with easy to access consumable and
expendable components.

Simplicity - The intuitive touch screen interface provides users with clearly identifiable selections
to begin cycles.

Long Life Door Gasket - Medpharm high temperature, air actuated door gaskets are seated
into a machined groove that provides a close tolerance creating a less strenuous environment,
extending door gasket life.


1200 Liter Large Steam Sterilizer With Safety Valves In Jacket and Chamber 0
1200 Liter Large Steam Sterilizer With Safety Valves In Jacket and Chamber 1



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
