Moist Heat Sterilization With Cross Contamination Seal Pharmaceutical Autoclave For Biohazard Process

China Moist Heat Sterilization With Cross Contamination Seal Pharmaceutical Autoclave For Biohazard Process supplier

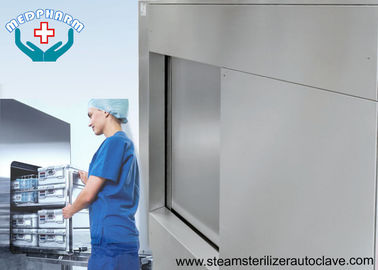

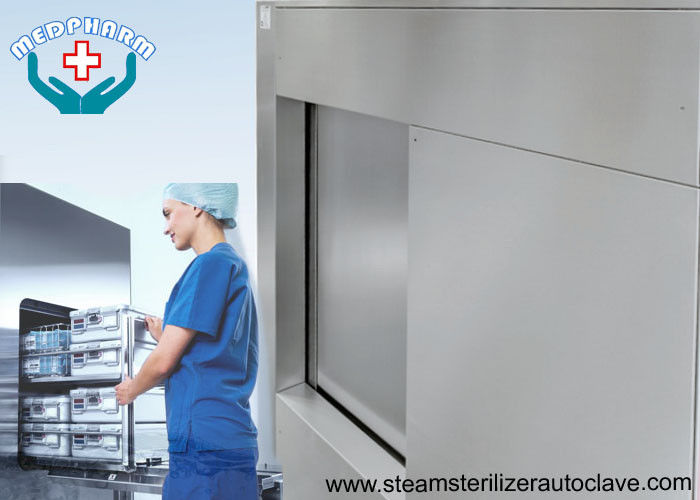

Large Image :  Moist Heat Sterilization With Cross Contamination Seal Pharmaceutical Autoclave For Biohazard Process

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-1.2Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Product Name: Pharmaceutical Sterilizer Volume Of Chamber: 1200L
Chamber And Jacket Material: 316 Chamber And 304 Jacket Sterilization Temperatures: 121ºC / 125ºC / 134ºC / 136ºC
Display: 640x480 Pixels, 5.7" Color Touch Screen Temperature Probe: Pt 100
Installation: Horizontal Sliding Single Door Door Mechanism: Pneumatically Operated

Moist Heat Sterilization With Cross Contamination Seal Pharmaceutical Autoclave For Biohazard Process


Specifications


  • Exposure temperature: 105~134℃;
  • Chamber working pressure: -0.1~0.23 MPa;
  • Jacket working pressure: 0~0.23 MPa;
  • Working noise: less than 60dB;
  • Surface temperature: not exceed environment temperature 25℃;



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.8Y

680*1180*1000

2200*2000*1410

1480

35

80

3

MD-1.0Y

680*1180*1250

2200*2000*1660

1630

40

100

4

MD-1.2Y

680*1180*1500

2200*2000*1910

2030

45

120

4

MD-1.5Y

680*1180*1870

2200*2000*2280

2230

50

150

4.5

MD-2.0Y

1000*1200*1700

2800*2000*2110

2490

60

200

4.5

MD-3.0Y

1000*1500*2000

2800*2200*2410

3050

90

300

5

MD-4.0Y

1000*1500*2670

2800*2200*3080

3700

120

400

6

MD-5.0Y

1000*1500*3340

2800*2200*3750

4600

150

500

8

MD-6.0Y

1000*1500*4000

2800*2200*4410

5400

180

600

8

MD-8.0Y

1000*1500*5340

2800*2200*5750

7000

240

800

12



Description

The MD series of high temperature pharmaceutical sterilizer (autoclaves) have horizontal
chambers with horizontal sliding doors. The chambers are fully jacketed over all four sides and back.
They are available in various sizes and configurations of materials, doors, vacuum systems,
sterilizing cycles, recording systems, and loading equipment.

We design and produce according to below regulations:

  • GB 150.1~GB 150.4-2011 Steel Pressure Vessel
  • GB/T 191-2008 Pictorial Markings for Handling of Packages
  • GB 4793.1-2007 Measurement, Control and Lab Safety Requirements of Electrical Equipment, Part 1: General Requirement
  • GB 9969.1-1998 General Principles for Preparation of Instructions for Use of Industrial Products
  • GB/T 14710-2009 The Environmental Requirements and Test Methods for Medical
  • Electrical Equipment
  • GB 18278-2000 Sterilization of Health Care Products--Requirements for Validation and Routine Control--Industrial Moist Heat Sterilization
  • JB/T 4711-2003 Coating, Shipping and Packing of Pressure Vessel
  • YY 0076-1992 Metal Parts Classification Technology Conditions of Coating
  • YY 0085.1-1992 Pulse Vacuum Pressure Steam Sterilizer
  • SFDA 2010 version GMP
  • Chinese Pharmacopoeia 2010
  • Supervision Regulation on Safety Technology for Fixed Type Pressure Vessel
  • ISPE, Volume 4, Water and Steam System, Edition 1, Jan. 2001


Features


  • The main body is manufactured under strict quality and safety standards.
  • Safe and reliable sealing door, easy to operate.
  • It totally conforms to GMP standards, and advanced sterilizing technical is used to guarantee sterilizing quality and drying effect.
  • Touch screen is used as HMI, who makes the operation easier and the sterilizing process more visual.
  • Special configuration of the pipeline and program can decrease condensed water to the minimum and make the drying effect better.
  • Special air filter(respirator) with a filtration precision of 0.22 um can thoroughly avoid the air from bacterium infection.
  • All the configuration components are of famous international top brands, ensuring long-term trouble-free running and the advanced condition of the machine.


Applications

The most flexible solution for multi-purpose sterilization in bio-pharma industries. From solids
and porous to liquids in open or non-hermetically closed containers.

For treatment of materials widely used in the pharmaceutical, biotechnology, chemical, cosmetic
and food industry, in laboratories and in research institutes.

Advantage

We offer professional turnkey project from design till done of the whole project

  • Project consultation
  • Conceptual design
  • Design
  • Factory building
  • Clean room and machine manufacturing
  • Installation
  • Commissioning
  • Training
  • Assist validation and production
  • Customer’s project works well


Moist Heat Sterilization With Cross Contamination Seal Pharmaceutical Autoclave For Biohazard Process
Moist Heat Sterilization With Cross Contamination Seal Pharmaceutical Autoclave For Biohazard Process

Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
