Animal Care Veterinary Autoclave With Safety Door Lock and Pneumatic Seal

China Animal Care Veterinary Autoclave With Safety Door Lock and Pneumatic Seal supplier

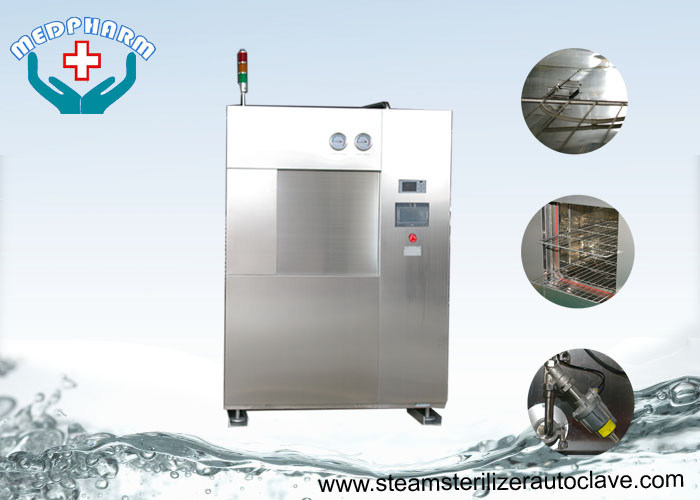

Large Image :  Animal Care Veterinary Autoclave With Safety Door Lock and Pneumatic Seal

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-0.24V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Name: Veterinary Autoclave Volume: 240 Liters
Chamber Size: 60*60*67cm Overall Size: 120*200*101cm
Control: PLC+MHI Interface Valve: Pneumatic Valves
Steam Source: Steam Generator Built In Door Type: Vertical Sliding

Animal Care Veterinary Autoclave With Safety Door Lock and Pneumatic Seal


Description

The small line of veterinary autoclaves are used in animal care facilities worldwide, incorporating the latest techniques to effectively sterilize heat and moisture-stable materials in a timely and efficient manner.

Equipped with state-of-the-art technology, these models are both reliable and easy to use. Multiple cycle options (vacuum, gravity, liquid) come standard, with a full temperature range.

Competitive Advantage

BSL3 Effluent Decontamination Sterilizers

Specification


Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.11V

400*400*700

1000*1800*1040

650

14

15

2

MD-0.16V

400*400*1000

1000*1800*1340

700

16

20

2

MD-0.20V

400*400*1300

1000*1800*1640

750

18

25

2

MD-0.24V

600*600*670

1200*2000*1010

800

20

30

2

MD-0.30V

600*600*840

1200*2000*1180

850

22

35

2

MD-0.36V

600*600*1000

1200*2000*1340

900

25

40

2

MD-0.45V

600*600*1250

1200*2000*1590

980

27

50

2

MD-0.60V

600*600*1670

1200*2000*2010

1100

30

60

3


Water


  • Softened water (Hardness <50ppm, pH Neutral) is at least requirement for the autoclaves’

           durability and safety of the goods to be sterilized.

  • Water pressure: 0.15----0.3MPa


Compressed air


  • Oil free compressed air is important to the autoclave’s running.
  • Oil free silence air-compressor is optional for user’s selection.
  • Compressed air pressure: 0.5---0.8MPa


Loading patterns


  • Flexible loading system suitable for various goods requirements
  • Loading Baskets
  • Loading trays


Electrical power


  • Our ordinary electrical power is AC380, 50Hz, 3phase/N/E
  • Other electrical power standards are available and compatible


Steam feeding


  • Built-in electrically heated steam generator (Standard)
  • External steam supply, saturated steam offer by user
  • Combining steam generators: individual electrically heated steam generators
  • Steam pressure: 0.4---0.7MPa


Sterilization Cycles


Cycle name

Further details

Application

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

Solid materials to be sterilized:
●Packaged instruments
●Empty glass containers
●Empty metal containers
Porous materials to be sterilized:
●Rubber articles

Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

Materials to be sterilized from which air can’t be easily displaced
●Textile

User Programmable

All preset parameters can be reset; Multiple customized programs can be set and stored by user.

Customized

Test cycles

B-D Test

3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

Test program

Vacuum Leakage Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

Test program
