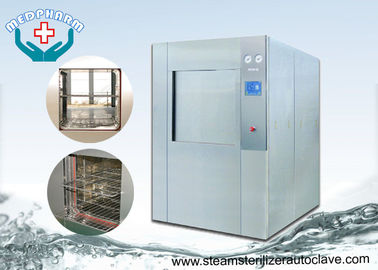

Muti level Password Access Veterinary Autoclave With Integral Clean Steam Generator

China Muti level Password Access Veterinary Autoclave With Integral Clean Steam Generator supplier

Large Image :  Muti level Password Access Veterinary Autoclave With Integral Clean Steam Generator

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-V series

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Name: Veterinary Autoclave Application: Veterinary And Research Us
Chamber Size: 110 Liters To 600 Liters Door Mechanical: Vertical Sliding Door
Material Optional: 304 Chamber Or 316 L Chamber Structure: Rectangle
Door Quantity: Single Or Pass Through Sterilization Temperature: 105 To 132 Degree

Muti level Password Access Veterinary Autoclave With Integral Clean Steam Generator


Specification

1. The advanced vertical veterinary autoclave line features top loading sterilizers from Medpharm with fast cooling, optional drying and waste treatment options.


2. The advanced veterinary line provides a single solution for the full spectrum of sterilization needs including liquids, culture media, instruments, glassware, plastics, pipette tips, biological waste, contaminated media and other veterinary items.


3.The autoclave is designed to accommodate a wide range of applications. The user can choose to add the features needed according to the sterilizer’s intended use.


4. The advanced veterinary autoclave line is available in an unmatched range of floor standing models with chamber volumes of 110liters to 600 liters.



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.11V

400*400*700

1000*1800*1040

650

14

215

2

MD-0.16V

400*400*1000

1000*1800*1340

700

16

220

2

MD-0.20V

400*400*1300

1000*1800*1640

750

18

225

2

MD-0.24V

600*600*670

1200*2000*1010

800

20

230

2

MD-0.30V

600*600*840

1200*2000*1180

850

22

235

2

MD-0.36V

600*600*1000

1200*2000*1340

900

25

240

2

MD-0.45V

600*600*1250

1200*2000*1590

980

27

250

2

MD-0.60V

600*600*1670

1200*2000*2010

1100

30

260

3















Program Parameter


Cycle name

Further details

Application

Instruments/Tools

3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.

Solid materials to be sterilized:
●Packaged instruments
●Empty glass containers
●Empty metal containers
Porous materials to be sterilized:
●Rubber articles

Clothing

3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.

Materials to be sterilized from which air can’t be easily displaced
●Textile

User Programmable

All preset parameters can be reset; Multiple customized programs can be set and stored by user.

Customized

Test programs

B-D Test

3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min.

Test program

Vacuum Leakage Test

Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect.

Test program


Description


The autoclave is an integral part of the veterinary practice, being at the center of the infection
control process. Medpharm autoclaves use steam as the sterilizing agent—at temperatures
ranging from 250° F to 273° F- to completely sterilize surgical and non-surgical instruments
Steam sterilization of veterinary instruments is safe and effective. Medpharm sterilizers are
designed for all your infection control needs.

Applications

Veterinary and research use

Competitive Advantage

Clean and no second pollution

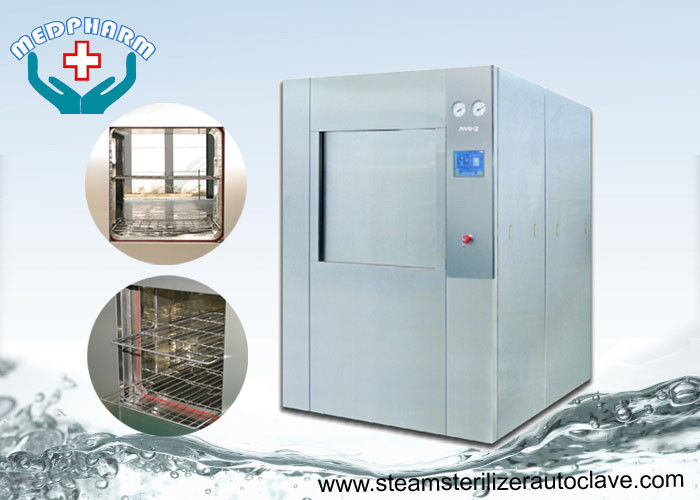

Muti level Password Access Veterinary Autoclave With Integral Clean Steam Generator
Muti level Password Access Veterinary Autoclave With Integral Clean Steam Generator

Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
