Recessed Wall Double Door Sterilizers With Water Pump For Water Recycling And Circulation

China Recessed Wall Double Door Sterilizers With Water Pump For Water Recycling And Circulation supplier

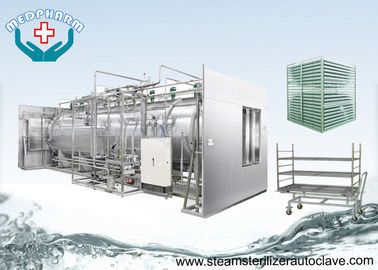

Large Image :  Recessed Wall Double Door Sterilizers With Water Pump For Water Recycling And Circulation

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: MD-1.5Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in protection film firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Chamber Volume: 1500 Liter Door Type: Automatic Sliding Door
Chamber: Rectangle, 304 Stainless Steel Sterilization Procedure: Steam
Cofiguration: Recessed Operator Panel: Touch Screen



Recessed Wall Double Door Sterilizers With Water Pump For Water Recycling And Circulation



Quick details



Horizontal sliding door For stable and easy operation
Touch screen Easy to use
The technical area On the left or on the right or both sides
PLC control system User friendly and one key operation function
Special design Customized orders are available



Applicaitons



The double door autoclaves is designed for central sterile supply departments (CSSD), hospital operating rooms (OR), ambulatory surgery centers, dental schools and other clinical environments.



Specifications



Model

MD-1.5Y

Door number

Double door

Door type

Horizontal sliding door

Chamber volume

1500 liters

Chamber Size

680*1180*1870mm

Overall Size

2200*2000*2280mm

Net Weight

2230kg

Steam

50Kg/cycle

Water

150Kg/cycle

Power(KVA)

4.5KVA

Working temperature

105---134℃

Sterilization time

0---99min

Temperature difference

≤±1℃

Max working pressure

0.23MPa

Steam

 0.4---0.8MPa

Soft water

 0.1---0.3MPa

Compressed air

0.4---0.8MPa

Electric power

AC380v, 3P/N/E, 50Hz



Door



The MD-1.5Y range can be supplied with either single or double (pass-through) doors, and are of the automatic horizontal sliding type. All door configurations include limit switches to detect when the doors are fully open or fully closed, and prevent the doors from being opened until the pressure within the chamber is within safe limits.



Vacuum System



Vacuum is created by means of either a liquid ring vacuum pump, or a water ejector driven by a centrifugal pump. Liquid ring vacuum pumps are fitted with a high efficiency tube condenser between the chamber drain and the pump to prevent overheating and cavitation of the pump, and resulting in a long service life. Each autoclave is fitted with a recirculating water conservation system. This reduces water consumption by the vacuum and condenser system by up to 80%.





Recessed Wall Double Door Sterilizers With Water Pump For Water Recycling And Circulation

Recessed Wall Double Door Sterilizers With Water Pump For Water Recycling And Circulation



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
