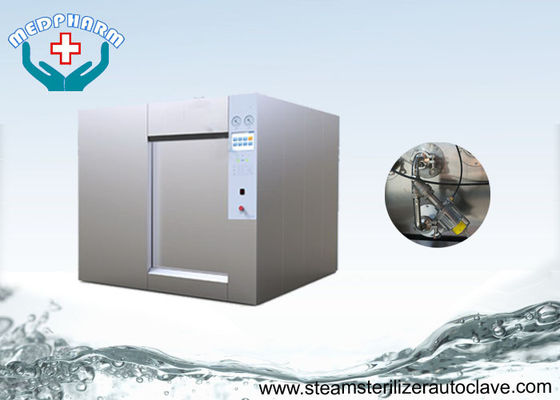

SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes

Good quality Hospital Steam Sterilizer for sales
Good quality Hospital Steam Sterilizer for sales
It is worthy to cooperate with Medpharm again. Also, prompt action on after sales service left me a deep impression.

—— Manusawee Wareesuwan

I like the sterilizer here running in our factory,it is wonderful.It is fully made to my requirement.Before that I contact many suppliers but they can

—— Marina.Stolyrova

I'm Online Chat Now

SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes

China SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes supplier
SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes supplier SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes supplier

Large Image :  SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: MD-V series

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Application: Research Institutes Sterilization Agent: Steam
Door Type: Vertical Sliding Door Chamber: 304 Stainless Steel
Steam Source: Built-In Steam Generator Water Saving System: Optional



SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes





Features



  • The sterilizer is made in AISI 304 stainless steel.
  • It has vertical sliding doors featuring automatic command.
  • It also has a color touch screen display that shows a simple interface. The user can be identified based on the password given.
  • The whole control is created from the PLC.
  • It has a quick printer that has graphical registers and provides real-time results.
  • Sterilization cycles are validated and standard, permitting a hundred cycles to be made.
  • It can also be connected to a PC.



Introductions



In research institutes, universities and biosafety laboratories people work with highly sensitive laboratory materials requiring extremely responsible handling. Safety and reliability are vital factors in laboratory reprocessing.



Medpharm is familiar with the demands running a laboratory poses and has been providing state-of-the art solutions used in laboratories, pharmaceutical companies, biotech companies, universities and hospitals.



Technical Chart



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.11V

400*400*700

1000*1800*1040

650

14

215

2

MD-0.16V

400*400*1000

1000*1800*1340

700

16

220

2

MD-0.20V

400*400*1300

1000*1800*1640

750

18

225

2

MD-0.24V

600*600*670

1200*2000*1010

800

20

230

2

MD-0.30V

600*600*840

1200*2000*1180

850

22

235

2

MD-0.36V

600*600*1000

1200*2000*1340

900

25

240

2

MD-0.45V

600*600*1250

1200*2000*1590

980

27

250

2

MD-0.60V

600*600*1670

1200*2000*2010

1100

30

260

3





Specifications



1. Valves & Components



All process valves are pneumatically operated piston valves, providing longer service life and less maintenance. All standard components are non-proprietary and easily sourced.



2. Steam Supply



  • Built-in Electrical Steam Generator Central Steam Supply
  • An automatic, integral, electrically heated steam generator mounted under the sterilizer chamber.
  • The integral steam generator pressure vessel is made of stainless steel, insulated with 50 mm chloride free mineral wool enclosed in a rigid removable aluminium sheet housing. The heating elements are made of stainless steel.



3. Optional Water Saving System



Trans 'WATER SAVING SYSTEM' is a used to limit the consumption of the water utility during the process and saves around 45-75% of regular water consumption.



Our Advantages



Maximum Flexibility



Our strength is flexibility. Sterilization processes, machine apacity and the quality of performance perfectly match our customers’ sterilization goods.



We offer a wide range of chamber sizes (300 to 8,000 liters) and programs. The sterilizers are available in vertical, horizontal and one- or two-door versions subject to requirements or chamber size.



Protecting People And The Environment



There are many types of materials in laboratories, hygiene standards are extremely high. Perfect sterilization processes are the prerequisite for safety in laboratory operation. Suitable methods have to be used to validate sterilization processes in terms of the desired effect,because perfect sterilization results can only be achieved by precisely matching sterilization processes to the material to be sterilized.





SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes

SS304 Sliding Door With Steam Generator Horizontal Autoclaves For Research Institutes



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
