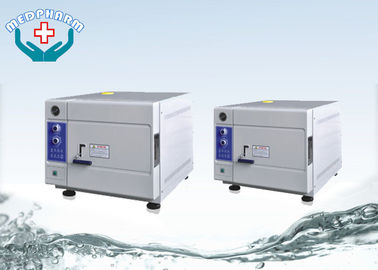

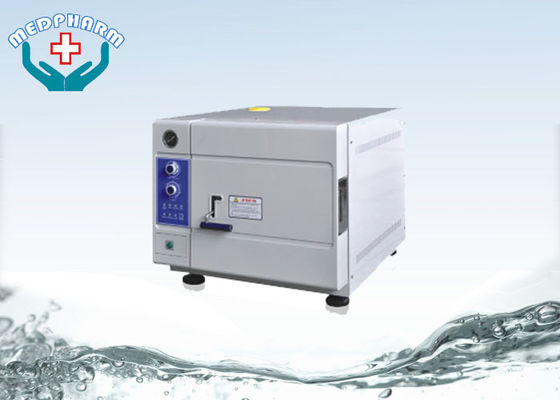

Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type

China Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type supplier
Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type supplier Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type supplier

Large Image :  Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: TM-XD24J

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Chamber Material: 304 Stainless Steel Adjustment Of Temperature: 220° F To 275°f
Chamber Temperature Difference: ≤±1℃ Time Range: 0---60min
Configuration: Bench Top Sterilization Procedures: Steam



Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type



Key Features



  • 0.22 µm air filter
  • With adjustable timer and adjustable pressure/temperature controller
  • Automatic shut off at the end of the sterilization
  • Safe protection of water lack, over temperature, over pressure
  • Door safety locking device prevents door from opening while chamber is pressurized.



Description



The autoclave is an integral part of the veterinary practice, being at the center of the infection control process. The autoclaves use steam as the sterilizing agent—at temperatures ranging from 220° F to 275°F to completely sterilize surgical and non-surgical instruments Steam sterilization of veterinary instruments is safe and effective.



Application



Bench top veterinary autoclave for clinics, laboratories, research institutes, field hospitals or disaster relief



Specifications:



  • The chamber is made of 304 stainless steel
  • Max working pressure: 0.22MPa
  • Max working temperature: 134℃
  • Adjustment of temperature: 105---134℃
  • Adjustment of Timer: 0---60min
  • Chamber temperature difference: ≤±1℃



Model Chart:



Model

Chamber

Dimensions

Loading tray

Package Dimension

NW/GW

power

TM-XD20J

20L

(φ250 *420mm)

480*480*385mm

340*200*30mm

(3pcs)

700*580*500mm

38/43Kg

1.5KW/AC 220V,

 50/60Hz

TM-XD24J

24L

(φ250 *520mm)

580*480*385mm

400*200*30mm

(3pcs)

800*580*500mm

44/50Kg

TM-XD35J

35L

(φ300 *500mm)

730*550*510mm

400*200*30mm

(4pcs)

820*680*650mm

73/90Kg

2.7KW/AC 220V,

50/60Hz

TM-XD50J

50L

(φ340 *550mm)

770*600*540mm

500*250*30mm

 (4pcs)

880*730*700mm

86/105Kg



Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type

Temperature Controlled With Water Shortage Alarm Veterinary Autoclave Table Top Type
