Automatic Vertical Sliding Door Animal Care Sterilization Autoclave For Vaccine Sterilization

China Automatic Vertical Sliding Door Animal Care Sterilization Autoclave For Vaccine Sterilization supplier

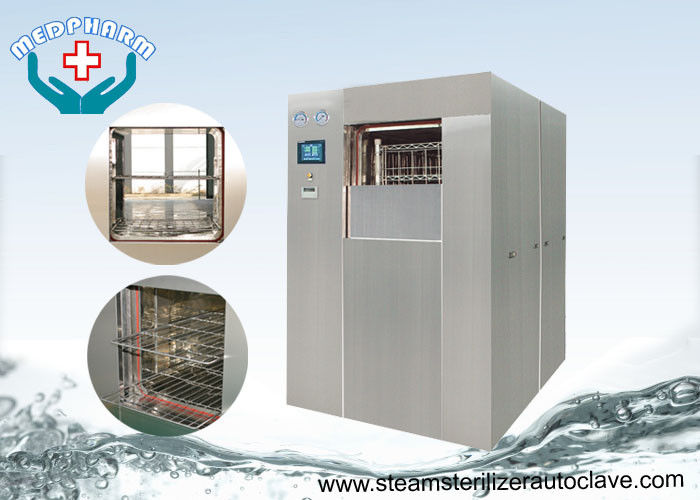

Large Image :  Automatic Vertical Sliding Door Animal Care Sterilization Autoclave For Vaccine Sterilization

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: MD-V series

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Chamber Volume: From 110 To 600 Liter Door Construction: Vertical Sliding Door
Temperature Range: 105°c To 134°c Vacuum Times: 0---9 Times
Configuration: Horizontal Rectangle Chamber Sterilization Procedure: Steam

Automatic Vertical Sliding Door Animal Care Sterilization Autoclave For Vaccine Sterilization



Features



  • 110 to 600 Liter chamber volume
  • Single or double door
  • Automatic vertical sliding door
  • 304 or 316L stainless steel chamber
  • Working tempurature range : from 104 °C  to 135°C
  • For Animal Care applications



Description



Sterilization in a laboratory environment has its unique requirements. The Medpharm line of vertical sliding door sterilizers for the life sciences successfully meets the challenges posed today in laboratories and research institutes.



Size Chart



See the chart below for a list of our standard sized autoclaves. Custom sizes are available upon request. Medphram’s sectioned autoclave chambers are assembled on-site, where building access is limited in space.



Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.11V

400*400*700

1000*1800*1040

650

14

15

2

MD-0.16V

400*400*1000

1000*1800*1340

700

16

20

2

MD-0.20V

400*400*1300

1000*1800*1640

750

18

25

2

MD-0.24V

600*600*670

1200*2000*1010

800

20

30

2

MD-0.30V

600*600*840

1200*2000*1180

850

22

35

2

MD-0.36V

600*600*1000

1200*2000*1340

900

25

40

2

MD-0.45V

600*600*1250

1200*2000*1590

980

27

50

2

MD-0.60V

600*600*1670

1200*2000*2010

1100

30

60

3



Safety



  • Mepharm keeps your employees safe and your laboratory sterile by integrating critical safety features in the steam sterilization process.
  • Control system safety features include: Multi level user security, continuous jacket, chamber, and drain temperature monitoring. An audible condition alarms is affirmed and documented if a cycle is outside of a parameter .
  • Door safety features include door obstruction stop, door cycle locks and interlocks, power loss lock, and controlled chamber depressurization in the event of extended power interruption.



Construction



All Mephram autoclave chambers are constructed from SS304 or 316L stainless steel. A rigid stainless steel track is used for the automatic vertical sliding doors. The frame is made of 304 stainless steel, and used for mounting the industrial grade process components. Our larger autoclaves can be fabricated for floor or pit mounted applications.





Automatic Vertical Sliding Door Animal Care Sterilization Autoclave For Vaccine Sterilization

Automatic Vertical Sliding Door Animal Care Sterilization Autoclave For Vaccine Sterilization





Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
