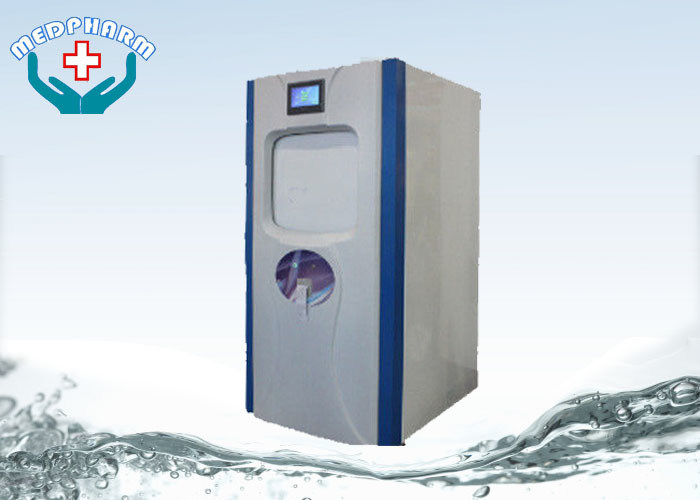

Horizontal Pure Ethylene Oxide ETO Sterilization Machine With Vertical Sliding Door

Horizontal Pure Ethylene Oxide ETO Sterilization Machine With Vertical Sliding Door
Horizontal Pure Ethylene Oxide ETO Sterilization Machine With Vertical Sliding Door

Large Image :  Horizontal Pure Ethylene Oxide ETO Sterilization Machine With Vertical Sliding Door

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: ISO
Model Number: SQ-HV
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: According to size
Packaging Details: Plywood box
Delivery Time: 20 work days
Supply Ability: 20 units per month
Detailed Product Description
Door: Vertical Sliding Volume: 120L/220L
Sterilization Medium: Ethylene Oxide Sterilization Temperature: 35---60°C
Application For: Endoscopes (both Rigid And Flexible) Material: 304 Stainless Steel
Touch Screen: With
High Light:

sterilizing medical equipment

,

ethylene oxide sterilizers

The Ethylene Oxide Sterilization Process
  • Pre-conditioning: Used to preheat and humidify product loads to predefined conditions. This will assure a repeatable EO sterilization process regardless of pre-processing load storage conditions
  • Sterilization: Performed using process phases specifically designed to provide the required level of EO exposure to assure sterility for a device or family of devices
  • Aeration: Used to accelerate out gassing of exposed product loads and to contain and eliminate residual EO emissions to ensure that it meets specified residual limits outlined in ISO 10993-7

Advantages of EtO are:

  • Low temperature
  • High efficiency – destroys microorganisms including resistant spores
  • Large sterilizing volume/ chamber capacity
  • Non corrosive to: plastic, metal and rubber materials

Disadvantages are:

  • Excessively Long cycle
  • Safety concerns - carcinogenic to humans
  • Toxicity issues - toxic residues on surgical instruments and tubing
  • Not recommended for flexible scope
  • EtO is flammable
  • Requires special room conditions, safety equipment and separate ventilation system
  • Relatively high annual costs for maintenance, servicing and consumables

What we can do?

  • Varying sizes of chambers
  • Large portfolio of cycles
  • Large range of encompassing solutions
  • Complete geographic coverage to meet your contract sterilization needs
  • Cycle optimization
  • Improved turnaround times
  • Flexible validation options
  • Parametric release
  • Research & development chambers
  • Reduced incubation studies



Parameters



Model Chamber Size Overall Size Net Weight Power
W*H*D mm W*H*D mm Kg KVA
SQ-H80 270*380*550 470*920*740 150 2
SQ-H120 450*400*750 610*1060*770 200 3
SQ-H220 520*500*800 680*1150*920 220 3.3
SQ-H360 650*700*800 840*1310*970 250 3.5
SQ-H600 800*860*880 1000*1550*1160 300 4
