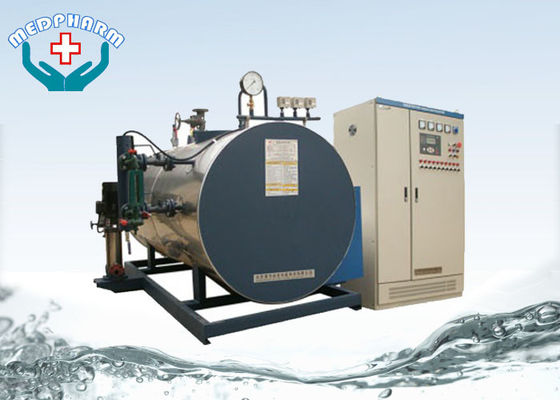

WDR Horizontal Electric Heating Steam Boiler Full Automatic With PLC Control
The steam boiler design structure
• All electrical components with CE and CCC certification to ensure product safety and life.
• Each group of heating component is equipped with clustered flange connection, with independent design, simple structure, high mechanical strength, which is safe, reliable and easy for replacement.
• It has a large steam room steam and good quality;
• Electromechanical installation is separate, and electrical control components are away from heat which is favorable for thermal dissipation protection.
• PLC microcomputer programmable control and display device can display the status of operating parameters and fault alarm, which realizes automatic control via the HMI
The steam boiler Technical data
| Type | WDR0.75 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | |
| Project | Unit | ||||||
| Rated evaporation | t/h | 0.75 | 1 | 1.5 | 2 | 3 | 4 |
| Rated working pressure | MPa | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 |
| Staturated steam temperature | ℃ | 184/193 | 184/193 | 184/193 | 184/193 | 184/193 | 184/193 |
| Input Power | KW | 540 | 720 | 1080 | 1440 | 2160 | 2880 |
| Input current | A | 810 | 1080 | 1620 | 2160 | 3240 | 4320 |
| Rated pressure | V | 3N AC 50Hz 380V | |||||
| Power×Group | KW×P | 36×15 | 36×20 | 36×30 | 36×40 | 36×60 | 36×80 |
| Main valve caliber | DN | 40 | 40 | 65 | 65 | 80 | 100 |
| Safty valve caliber | DN | 2×40 | 2×40 | 2×40 | 2×40 | 2×40 | 2×50 |
| Infall caliber | DN | 25 | 25 | 25 | 25 | 40 | 40 |
| Sewage valve caliber | DN | 40 | 40 | 40 | 40 | 40 | 40 |
| Overall size | L mm | 2800 | 2950 | 3450 | 3500 | 3950 | 4100 |
| L1 mm | 2400 | 2500 | 3050 | 2880 | 3200 | 3550 | |
| W mm | 1800 | 1900 | 2180 | 2000 | 2100 | 2480 | |
| W1 mm | 1550 | 1600 | 1430 | 1880 | 1980 | 2120 | |
| H mm | 1550 | 1600 | 2100 | 2500 | 2650 | 2980 | |
| H1 mm | 1300 | 1350 | 1850 | 1900 | 2100 | 2200 | |
Control cabinet overall size |
A mm | 1200 | 1200 | 1500 | 1800 | 2100 | 2400 |
| B mm | 500 | 600 | 600 | 600 | 600 | 600 | |
| C mm | 1800 | 1800 | 2000 | 2000 | 2200 | 2200 | |
| Weight | T | 1.6/2.0 | 1.8/2.2 | 2.2/2.7 | 2.8/3.3 | 3.5/4.1 | 4.5/5.2 |
