Advanced Touch Screen Controller Heavy Oil Steam Boiler With Sweeping Function

China Advanced Touch Screen Controller Heavy Oil Steam Boiler With Sweeping Function supplier

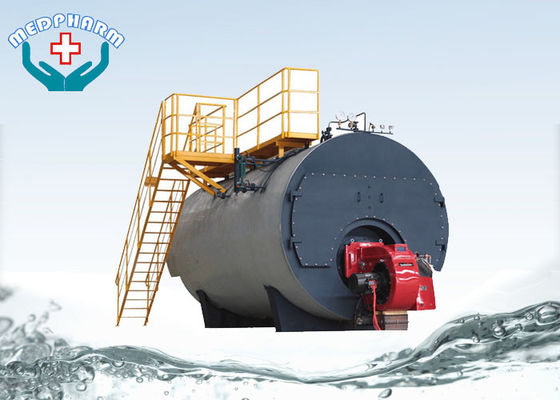

Large Image :  Advanced Touch Screen Controller Heavy Oil Steam Boiler With Sweeping Function

Product Details:

Place of Origin: China
Brand Name: Medpharm
Certification: ISO/CE/CCC
Model Number: Heavy Oil Boiler

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood box
Delivery Time: within 20 working days
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Control System: PLC Control Heating Source: Oil Gas Thermal Oil Boiler
Alarm Interlock Devices: Ensure Safe Operation Of The Boiler Configuration: Horizontal
Rated Evaporation: 10t/h Rated Working Pressure: 1.25/1.6MPa

Advanced Touch Screen Controller Heavy Oil Boiler With Sweeping function



  • Sweeping function after preset can improve working conditions of burner and extend its service life.
  • The unique design of the large burning chamber can increase the radiation of hearth heating area and reduce the volume of the boiler and NOx emissions;
  •  Smoke pipes box around boiler uses multi-level sealing approaches, which is easy for maintenance of the smoke box;
  •  Horizontal structure has area ample heated and adequate heat transfer, the boiler is stable in running when load changes, and combustion efficiency is high. Furnace pipe is arranged low with a large range of water level safety. Steam evaporation surface is large, with high quality steam.
  •  It is equipped with advanced touch screen controller, digital prosecution system to achieve automatic control of boiler operation, with a variety of alarm interlock devices to ensure efficient, safe, reliable operation of the boiler.

Specificaiton:


Type   WNS10
Rated evaporation t/h 10
Rated working pressure MPa  1.25/1.6
Staturated steam temperature   193/204
Fuel consumption Light diesel oil kg/h 650
Natural gas Nm3/h 700
Liquefied gas Nm3/h 300
Pipeline gas Nm3/h 1700
Main valve caliber  DN 150
Safty valve caliber  DN 80×2
Infall caliber  DN 65
Sewage valve caliber  DN 50
Chimney caliber  DN 900
Overall size L mm 8330
  L1 mm 7040
  W mm 3475
  W1 mm 3040
  H mm 3800
  H1 mm 3050
Weight  T 23/26
