Strong Vacuum System Environmental Test Chamber Oven Ensuring Excellent Performance
Touch Screen Operation
Automatic Temperature Control

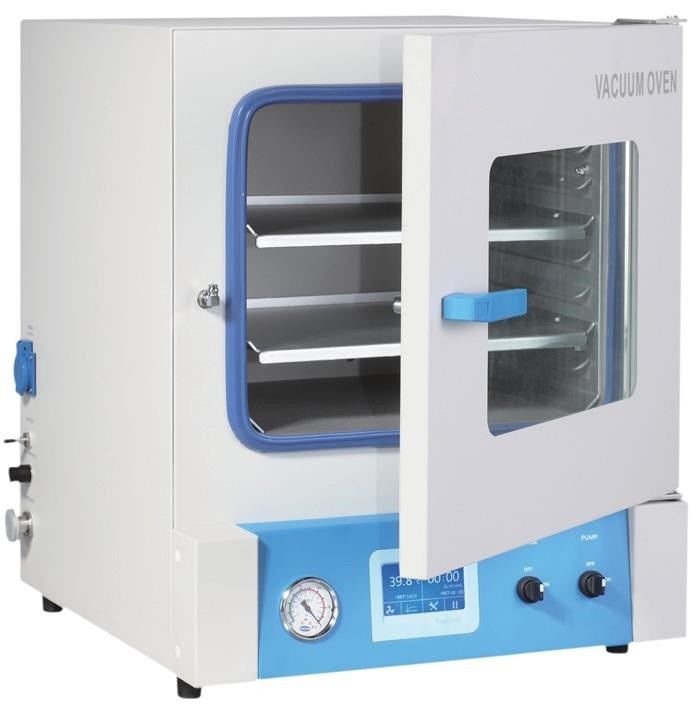

Vacuum Oven
The vacuum oven has an extremely compact size and at the same time manages to provide much more shelf space than comparable vacuum ovens. A large,full size window makes the observation of the test sample in process very easy.
The technicians had spend days to test every vacuum oven before it leaves the factory.
Features
●Colourful touch screen controller.
●Vacuum degree real-time display to meet the drying requirements under different vacuum conditions.
●It has inert gas inlet to meet the needs of inert gas.
●304 stainless steel,electrolytic scrub treatment and better intensity.
●The height of shelves is adjustable to meet different containers’ drying and sterilizing requirement.
●Exhaust valve switch and pump switch with electromagnetic valve controller which is safe and reliable.
●Reserving vacuum pump power and the operation is more convenient and reliable.
●With limited temperature alarm system.
●Programming setting function with 7 periods and 9 steps for each period, which means there are 63 programmable steps in total. (option)
Specifications
●Temperature Range: RT+10℃ ~200℃
●Temperature Resolution: 0.1℃
●Max. Degree of Vacuum: 133Pa
●Chamber Material: Stainless steel
●Electrical Requirement: AC220V/50Hz
●Timer Range: 1~5999mins
| Model | BV-20 | BV-50 | BV-90 |
| Chamber Volume | 24L | 51L | 91L |
| Standard Quantity of Shelves/Max | 2/5 | 2/7 | 3/9 |
| Interior Dimension (W×H×D,mm) | 300×275×300 | 415×345×370 | 450×450×450 |
| Exterior Dimension (W×H×D,mm) | 445×590×505 | 580×670×594 | 610×774×721 |
| Max.load | 20Kg | 20Kg | 20Kg |
| N/W(Kg) | 60 | 95 | 145 |
| Power Consumption | 700W | 1400W | 2000W |
| Inert gas air inlet | √ | √ | √ |
Options
●Independent temperature limit controller
●Vacuum pump
●LED lamp
