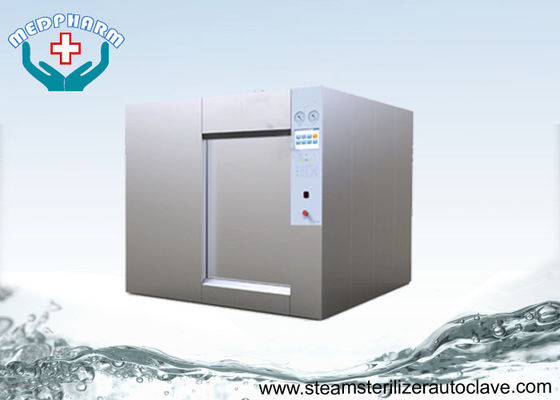

Automation Autoclave Sterilizer Machine With Pressure Gauge And Pressure Reducing Valve

Automation Autoclave Sterilizer Machine With Pressure Gauge And Pressure Reducing Valve
Automation Autoclave Sterilizer Machine With Pressure Gauge And Pressure Reducing Valve

Large Image :  Automation Autoclave Sterilizer Machine With Pressure Gauge And Pressure Reducing Valve

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-2.0Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportationpacking
Delivery Time: 35 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Factory Brand: Medpharm Model Name: MD-2.0Y Autoclave Sterilizer Machine
Usage: Kill Heat Resistant Products Bacteria By High Temperature And Pressure Chamber Size: 1000*1200*1700mm
Optional: Water Softer,steam Boiler,air Compressor Door Type: Hinge Door Or Horizontal Sliding Door
Loading: Automatic Or Manual As Customized Overall Size: 2800*2000*2110mm
High Light:

auto clave machine

,

sterile medical equipment



Automation Autoclave Sterilizer Machine With Pressure Gauge And Pressure Reducing Valve



Feature



Feature

Benefit

Unique non-stick door gasket

Specially formulated to eliminate sticking and to avoid door jamming,FDA food grade silicon.

Air-actuated gasket

Minimize steam exposure and extend working life.

Whisper-quiet air compressor optional

Minimize noise,eliminate need for air supply,supply constant air pressure to gasket

Side-mounted control

Avoids steam exposure to electronics and extends touchscreen life

One style solenoid valve used throughout sterilizer

Simplifies maintenance,non-proprietary valve reduces cost

Integrated post-vac drying cycle

Vacuum drying phase eliminates steam and removes moisture from the load((i.e. reduces wet-packs)

Pressure gauge calibration

Permits periodic calibration to maintain accuracy,extend component life

Customizable design

All sliding door sterilizers are custom made to exact configuration,functionality and options

Automatic power door operation

Powered door operation allows 1 finger open/close operation.The door can be manually operated in the event of power loss.



Specification



- Continuous chamber and jacket in high quality nickel-chrome stainless steel.

- Controlled by Mitsubishi industrial microcomputer and user-friendly, high resolution, colour touch screen.

- Stainless steel valves and steam pipes.

- Steam pipes connected using a tube CLAMP system: laboratory quality offered as standard.

- Integrated steam discharge system using the silent and efficient Venturi ejector.

- Automatic electric doors with safety system.

- Water saving system (optional).

- Prepared for remote operation (online remote maintenance).

- With inlets for validation sensors.

- Access ports for PC connection and barcode reader (optional).

- Non-condensable gas-measuring module (optional).

- Variants: for sunken area- floor level loading- or on plinth- raised loading on the ground.

- Optional automatic loading/unloading.



Description



Medpharm manufactures and markets a wide range of sterilizers, accessories and equipment that have been designed to meet the sterilization needs of health centres, pharmaceutical laboratories, universities, as well as for the treatment of biohazardous waste.



Applications



Cover a large field of applications for hospitals, CSSD and medical centers. Medpharm sterilizers are also used in laboratories, in the pharmaceutical and other industries, as the additional programs enable them to sterilize medical solutions, microbiological cultures and mediums.



Competitive Advantage



- Additional temperature sensor in chamber for liquids sterilizing

- All pipes and fitting are made of stainless steel  AISI 316L

- Validation IQ/OQ

- Slot for connection with external PC for data transfer on the front panel

- Bio-seal optional



Automation Autoclave Sterilizer Machine With Pressure Gauge And Pressure Reducing Valve 0
