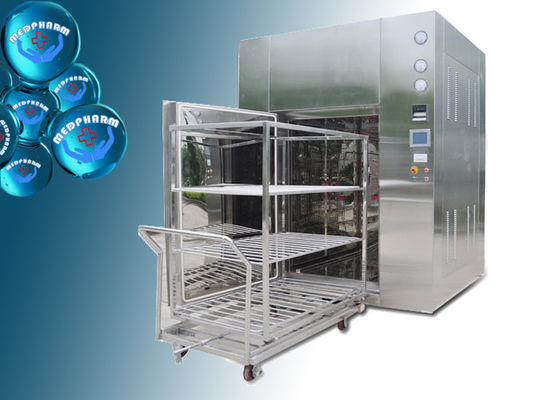

Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory

Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory
Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory

Large Image :  Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/ISO
Model Number: DHM series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance, LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Application Domain: Laboratory Sterilization Procedure: Hot Air
Configuration: Front-Loading Chamber Volume: 290 To 5000 Liter
Standard: CGMP Regulations Feature: Microprocessor-Controller
High Light:

horizontal sterilizer

,

Sterilization Cycle Autoclave



Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory



Brief



Dry Heat Sterilizers are trusted by professionals including those in medical and dental offices, nail salons, spas and salons, electrology offices, laboratories and tattoo and piercing shops.



The dry heat method is considered advantageous because it's one of the most reliable ways to sterilize items without causing any corrosion to metal equipment. In addition to eliminating any rust and corrosion from forming, they protect instrument sharpness.



Dry heat sterilizers are also known as hot air sterilizers and non-toxic and completely environmentally friendly.



Features



  • Pyrogen-removing and dry heat sterilization are the best primary function.
  • The perfect 100 grade laminar flow purifying system compliance with the cGMP regulations.
  • PLC Intelligent control system with touch screen HMI to ensure the stable performance and easy friendly operation.
  • Flexible loading system designed according to your special certain items to ensure not only  the  heating even distribution in the chamber, but the maximum loading capacity as well.
  • Flexible special design offered for you, considerable according to your total equipments  layout space and technical requirements, saving not only space, but energy and cost as well
  • Best total solution as per your requirements in details and compliance with cGMP regulations.



Parameters



Model

Volume

Chamber  Size

Overall Dimension

Heating Power

Cooling Water

M3

W*H*D mm

W*H*D mm

KW

KG/batch

DMH-0.29

0.29

600*700*700

1620*1720*1160

9

150

DMH-0.63

0.63

600*700*1500

1620*1720*1960

15

180

DMH-1.2

1.2

1000*1200*1000

2100*2300*1460

22

200

DMH-1.5

1.5

1000*1500*1000

2100*2600*1460

25

220

DMH-1.8

1.8

1000*1500*1200

2100*2600*1660

28

250

DMH-2.0

2.03

1000*1500*1350

2100*2600*1810

30

300

DMH-3.0

3

1000*1500*2000

2100*2600*2460

45

400

DMH-4.0

4.05

1100*1600*2300

2200*2700*2760

55

550

DMH-5.0

5.04

2000*1400*1800

3100*2500*2260

70

750



Applications



DMH series double door dry heat sterilizers are applicable to the bacteria-killing, pyrogen-removing and dry sterilization of solid items such as Glassware, Metal trays, Containers and metal materials, Machine accessories used in production, Basic biopharmaceutical products which can withstand dry heat treatment at high temperatures.



Advantages



Microprocessor Control System: specially developed for laboratory autoclaves. From simple cycles to fully featured multi-program operation with printed records, this unique control system allows unrivalled flexibility.



Multi-Program Memory: Simply press the program number required to restore all your settings. 5 program versions are available.





Horizontal Dry Heat Sterilizers With Microprocessor Control System For Laboratory 0



Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
