Product Details:
Payment & Shipping Terms:
|
| Door Type: | Vertical Sliding Door | Control System: | Micro Computer |
|---|---|---|---|
| Sterilization Medium: | Hydrogen Peroxide | Sterilization Temperature: | 35-55*C |
| Sterilization Products: | Heat Sensitive Products | Chamber Volumn: | 100 Liter And 200 Liter |
| High Light: | medical sterilization equipment,hydrogen peroxide low temperature plasma sterilizer |
||

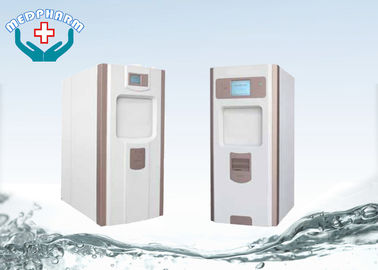

Front-Loading H2O2 Low temperature Plasma Galaxy sterilizer Sliding Door
This sterilizer is widely used for metallic, nonmetallic and wet/heat sensitive instruments in the operating room, CSSD and other medical institutions. No more damage to your instruments as we do not sterilize with Heat, Moisture or Pressure.
Application:
Flexible Endoscope
· Ultrasound Doppler
· Rigid Scope
· Ophthalmic Lenses
· Surgical Drill
· Shaver Hand pieces
Surgical Instruments and
Specifications
|
Model Parameters |
MD-100 PLASMA GALAXY |
MD-200 PLASMA GALAXY |
| Chamber dimensions (L×W×H)mm |
750×450×400
|
1250×450×400
|
| Volume (L) |
135
|
225
|
| Overall dimensions (L×W×H)mm Cartridge Type |
990×760×1800
|
1460×760×1800
|
| Weight (Kg) |
400
|
500
|
| Power supply |
50/60Hz
|
50/60Hz
|
| Power (Kw) |
3
|
3.5
|
| Environment temperature |
10~40
|
10~40
|
| Minimum installation room (L×W)mm Cartridge | 1500×900 | 2000×900 |
| Minimum repair distance | 1 meter for each side | |
Features And Advantages
Low temperature sterilization. The sterilizing temperature is 50±5 C. Adopt dry sterilization which has no damage effect on instruments so this in turn extends the instrument service life
Safe and environment friendly. The products of sterilization are water and oxygen molecules that have no toxic harm to the staff or patients alike, and there is no need for drainage or air exhausting. The high efficient H2O2 filter is installed in the exhausting outlet to guarantee no H2O2 pollution reaches the environment.
Time-saving and cost-efficient. Rectangular chamber has greater capacity, high efficiency and short sterilizing cycle (≤50mins). The sterilized articles can be used directly without extra processing. It can increase the instrument turnover and decrease the storage of precious instruments which directly cuts down the processing costs.
Convenient. Only power supply is needed for installation. The system adopts a user friendly control interface with intelligent programming software. Can be equipped with foot switch (alternative option) and integrated biological incubator (alternative option).
