Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation

Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation
Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation

Large Image :  Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: ISO/CE/CCC
Model Number: CWNS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Plywood box
Delivery Time: within 20 working days
Supply Ability: 50 units per month
Detailed Product Description
Control System: PLC Control Heating Source: Oil Hot Water Boiler
Alarm Interlock Devices: Ensure Safe Operation Of The Boiler Configuration: Horizontal
High Light:

high efficiency steam boiler

,

oil steam boiler

CWNS Horizontal Oil Hot Water Boiler Freezing Cold Winter Night



Key features:



  1. Furnace big high radiate,three return design,combustion air is full,high efficiency heating surface.
  2. Application breathing tube additional spoiler film technology,not only expansion of heat,the dust and its “self-cleaning”feature can reduce thermal resistance. Improve heat transfer effectiveness. More than 90% thermal efficiency.Intelligent,automatic control,with automatic temperature regulation, over-temperature standby.
  3. Freezing cold winter night, and other functions, and to achieve the outdoor temperature changes automatically adjust the temperature heating function to maximize energy conservation.
  4. Burners are used by importing,pressure spray,burning completely low noise.
  5. Confined by connecting structure,safe,reliable,long service life.

Specifications:

Type Unit CWNS0.58-85/60-Y.Q CWNS0.7-85/60-Y.Q CWNS1.05-85/60-Y.Q CWNS1.4-85/60-Y.Q CWNS1.75-85/60-Y.Q
Rated power MW 0.58 0.7 1.05 1.4 1.75
Total heat 104kcal 50 60 90 120 150
Rated working pressure Mpa ordinary pressure


Fuel consumption
Light diesel oil Kg/h 54 65 97.5 130 162
Natural gas Nm3/h 58.5 70 105 140 175
Liquefied gas Nm3/h 25 30 45 60 75
Pipeline gas Nm3/h 141.5 170 255 340 425
Infall caliber DN 100 100 125 150 150
Effluent caliber DN 100 100 125 150 150
Sewage valve caliber DN 40 50 50 50 50
Voltage V 3N AC 50Hz 380V

Overall size
L mm 2900 3020 3230 3650 4100
W mm 1500 1700 1750 1820 1890
H mm 1700 1880 1960 2050 2100
Weight kg 1500 2450 2780 3500 3860

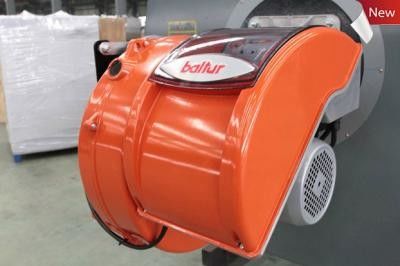

Product pictures:

Oil / Hot Water Industrial Steam Boiler Freezing Cold Winter Night Safe Operation 0
