Product Details:
Payment & Shipping Terms:
|
| Door: | Manual Door | Chamber Material: | 304 Stainless Steel |
|---|---|---|---|
| Dimension: | 866*645*1800 Mm | Chamber: | 643×1040×640(mm)(LxWxH) |
| Capacity: | 360 Liter | Application: | Decontaminating Surgical Instruments |
| Highlight: | washer disinfector machine,dental washer disinfector |
||
Large Scale Medical Washer Disinfector For Decontaminating Surgical Instruments
Application:
Medpharm washer disinfector is designed for the cleaning and intermediate-level disinfection of soiled reusable utensils, trays, glassware, rubber and plastic goods, simple hard-surfaced rigid surgical instruments (such as forceps and clamps) and other similar items found in healthcare facilities. Compact design and small footprint enables easy conversion from manual cleaning/disinfection process.
Key feature:
-8 DIN trays capacity,4 layers shelves with three rotary spray arms offers large scale washing spaces.
-Visible tinted, tempered glass door with hollow remains cool to touch.
-Doors are pneumatically activated with a built in safety mechanism with interlock function.(if pass through door type)
-Heat sensitive micro-printer built in with RS232 port for recording washing phases
- Ergonomic design of the door level height allows to the user a
convenient loading/unloading job with the support of a manual
loading/unloading shelf.
- Rotary spray arms fixed at the top and bottom of the chamber are disassemble spray head
Technical specification
| Model Name | RAQ-H-II |
| Dimensions | |
| Width/Depth/Height mm. | 866/645/1800 mm |
| Net Weight | 180 Kg |
| Gross Weight | 210 Kg |
| Basket Volume | 8 DIN baskets |
| Material | 304 stainless steel heating coils,chamber, plumbing ,door ,cover, shelf and trays, cold steel power coated frame |
| Connections | |
| Drain Pipe | Diam DN40 |
| Electrical Connection | 380 Vac 3 N+G / 50Hz |
| Total Power | 20 kW |
| Pump Power | 1.5 kW |
| Dryer blower | 210m3/h |
| Dryer heating | 6KW |
| Breather pipe chamber | Diam. DN50 |
| Demineralized Water Connection | Female DN 20 mm |
| Connections - Cold Water | |
| Hydraulic Connection Cold Water | Female DN 20 mm |
| Min. / Max. Pressure | 0.2Mpa/0.4Mpa |
| Min. / Max. Temperature | 10°C/20°C |
| Utillities | |
| Noise | 70 dBA |
| Min. / Max. Permitted Room Temperature | +5°C / +40°C |

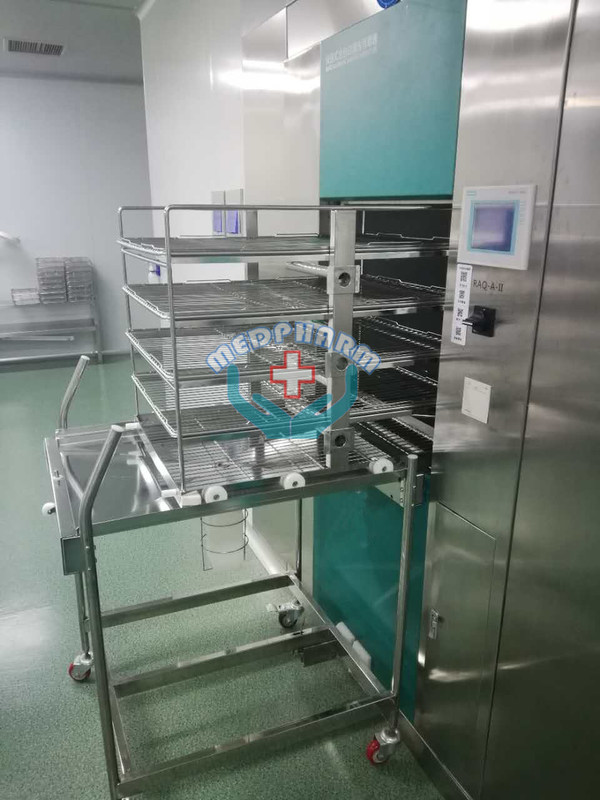

Wash Carts:
Multiple Level Wash Carts—Standard wash carts are available
with 2, 3, or 4 levels of removable shelves. Each shelf will hold 2
large instrument trays. Unique intermediate shelves and spray arms are removable to allow operators the flexibility to clean and disinfect dedicated loads of instruments, mixed loads of instruments with utensils, or rigid endoscopes and anesthesia tubing with standard instruments.
