Forced Air Oven Environmental Test Chamber With Excellent Air Forced Convection

Touch Screen Operation

Automatic Temperature Control

Forced Air Convection

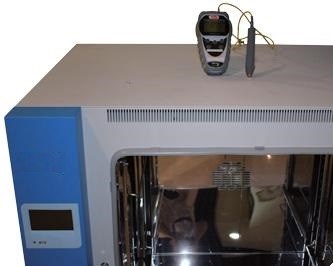

Forced Air Oven

The forced air oven controls very efficiently the temperature starting from 10°C room temperature up to 200°C(or 300°C).The PID controller,with double color display, shows constantly the set temperature and real temperature inside the chamber. Moreover it’s possible at any time see the operating time. It will automatically stop working as soon as temperature over limiting.

Features

●Colourful touch screen controller.

●304 stainless steel,mirror polishing processing, easy to clean and maintain.

●High-power fan forced convection,with 3-speed fan power adjustable,good uniformity.

●The shelf design of anti-tilting to avoid the accidents when pulling out the shelves.

●With reserved test hole,real-time detection of the temperature in working chamber.

●The height of shelves is adjustable to meet different containers’ drying and sterilizing requirement.

●With a top damper adjustment technology to ensure the gas convection enough in working chamber.

●Thermal temperature sensor with high precision,high accuracy and stability.

●With limited temperature alarm system.

●Programming setting function with 7 periods and 9 steps for each period, which means there are 63 programmable steps in total. (option)

Specifications

● Temperature Range: RT+10℃ ~200℃ (300℃ )

● Electrical Requirement: AC220V,50Hz

● Display Resolution: 0.1℃

● Temperature Uniformity(@150℃ ): ±2.0℃

● Timer Range: 1~5999mins
