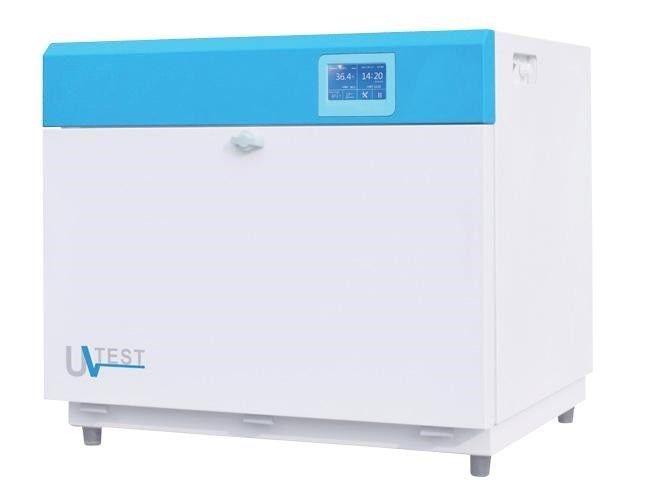

Desk-top UV Aging Test Chamber
Touch Screen Operation
Automatic Temperature Control
Fluorescent ultraviolet aging test chamber adopts fluorescent ultraviolet as light source to simulate ultraviolet radiation and condensation, accelerating weathering test of the material and get the result of weatherability. It could simulate the ultraviolet, rain, high temperature, high humidity, condensation, dark and such environment conditions. By simulating these conditions to merge them into a circulation and let it complete the specified times of cycle automatically.
●4.3 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation.
●BPT sensor, cabinet temperature and rain cycleetc, which can be visually settingand displaying.
●With 4 pieces of 20W ultraviolet lamp, more stable and the life of the lamp is up to 5000 hours.
●B-UV-S series provide 3 spray headers which can meet the uniformity of rainfall for flat sample rack.
●Radiation intensity adjustment with optional RM-20 irradiance meter which by manual adjustment.
●Blackboard temperature self-control by test set value, to meet user for lighting, condensation, spray, temperature and other
aging test chamber.
●Build-in 4 pieces of 70x150 flat sample racks, the users can test for three-dimensional or flat samples.
|Temperature Range||Light cycle||45℃ -80℃|
|Condensation cycle||40℃ -60℃|
|Power||20W/pc, total 4 pcs|
|Wavelength range||Standard with UVA@340nm|
|Spraying function||3-hole spraying|
|Sample shelf size||8 pcs standard sample test shelf|
|Center distance between sample and lamp||150mm~280mm|
|Exterior dimension (WxDxH,mm)||770x565x690|
|Cycle mode||Dark, light, spray, condensate set multi-cycle automatic control|
|Electrical requirement||AC220V, 50Hz|
|Standard Type||Standard No.|
