Product Details:
Payment & Shipping Terms:
|
| Production Name: | Hospital Sterilizer | Application: | Hospital CSSD, Clinic, Operation Room, Laboratories Of Life Science Etc. |
|---|---|---|---|
| Loading Capacity: | 600 Liters Chamber | Material: | Chamber And Jacket Full Of Sus304 |
| Door Construction: | Vertical Sliding Single Door | Steam Supply: | Built-In Steam Generator Of Full Sus304 |
| Installation Type: | Floor Standing | ||
| High Light: | Hospital Large Steam Sterilizer,600 Liters Chamber Hospital Steam Sterilizer,Autoclave Laboratorio Hospital Steam Sterilizer |
||

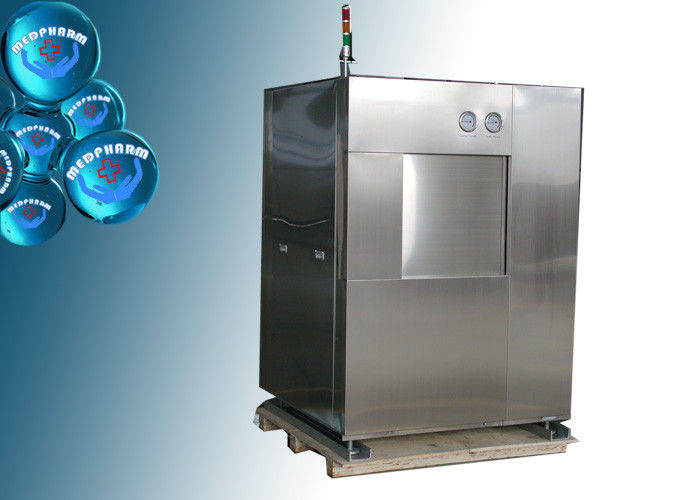

Autoclave Laboratorio Hospital Large Steam Sterilizer Sterilaztion
The basic description and scope of application
Sterilizer adopts PLC program control, temperature control uses PID control algorithm, constant temperature sterilization, high precision, stable and reliable; easy to use, visualized display; good adaptability, at different ambient temperature, heating power, voltage fluctuations there is a high degree of control accuracy. It use saturated water vapor as a working medium, can effectively sterilize subjects in a short time. Suitable For medical units, pharmaceutical companies to sterilize surgical instruments, dressing fabrics and other items .
Control System
This Hospital Sterilizer features Mitsubishi PLC with enhanced functionality and user-friendly interface screen.
• Touch-screen with 800 x 480 display resolution
• Ink-on-paper impact printer,
• Help screens for programming and troubleshooting alarm conditions
• Automatic check of control program and cycle data maintains process integrity
• Individual digital data recorder for sterilization data storage.
• High precise temperature sensor and pressure transmitter to ensure the PLC control accurately and total sterilization effectiveness.
• Double sensor at the same point for PLC control and individual recorder monitoring to ensure the sterilization performance of reliable and repeatable.
Steam Generator
This Hospital Sterilizer equipped with an electric steam generator includes an automatic water-in, electric heating and drain controlled by PLC.
Steam generator vessel of SUS304, electric heating element of SUS304 to ensure the clean steam supply.
• Electrical - Controls
220 Volt, 50/60 Hz, 1-phase, 1KVA
Optional:
220 Volt, 60 Hz, 1-phase, 1KVA or
120 Volt, 50/60 Hz, 1-phase, 1KVA
• Electrical - Integral Steam Generator
AC380Volt, 50 Hz, 3-phase, 18KW
Optional:
AC208 Volt, 50/60 Hz, 3-phase, 18KW
AC240 Volt, 50/60 Hz, 3-phase, 18KW
AC380 Volt, 60 Hz, 3-phase, 18KW
AC480 Volt, 50/60 Hz, 3-phase, 18KW
Programs
Test programs: Bowie & Dick test, vacuum test.
Working programs: Multiple customizable programs for textiles, instruments, rubbers, culture medium and liquids in unsealed bottles.
Main adjustable parameters
Sterilization temperature rage: at 105°C to 134°C
Sterilization time rage: 0---99 minutes
Vacuum times: 0---9 times
Drying time: 0---99 minutes
Multiple adjustable parameters to ensure user’s customized programs are available, accurate and perfect sterilization effect.
Loading/Unloading System
Standards equipped:1 piece loading cart of SUS304 stainless steel, 2 pieces trolley of SUS304 stainless steel.
loading plate, racks or shelves are available for option.
Parameters
|
Model |
MD-0.6V |
|
Door type |
Vertical sliding single door |
|
Max working pressure |
0.23Mpa |
|
Working vacuum degree |
<-0.086Mpa |
|
Max working temperature |
134℃ |
|
Chamber size |
1670*600*600 mm(D*W*H) |
|
External dimension |
2010*1350*1800mm(D*W*H) |
|
Net weight |
1200Kg |
|
Utilities Supply |
|
|
Electric power |
AC380V, 50Hz, 3Ph/N/E,39KVA |
|
Water |
0.15---0.3MPa, Hardness <50ppm, pH Neutral, 85Kg/cycle |
|
Compressed air |
0.5～0.7Mpa, 10 liters/minute |
