Product Details:
Payment & Shipping Terms:
|
| Application: | Clinics, Laboratories | Chamber Volume: | 35L |
|---|---|---|---|
| Feature: | Drying System | Controller: | Micro-computer Control Panel |
| Material: | SS304 Or 316L | Safety System: | Door Safety Lock System |
| High Light: | Sterilizing Surgical Equipment,Sterilization Medical Equipment |
||

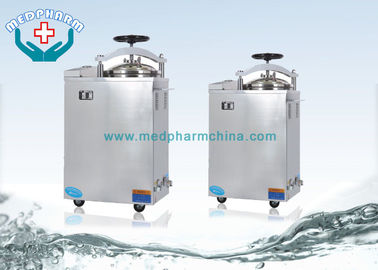

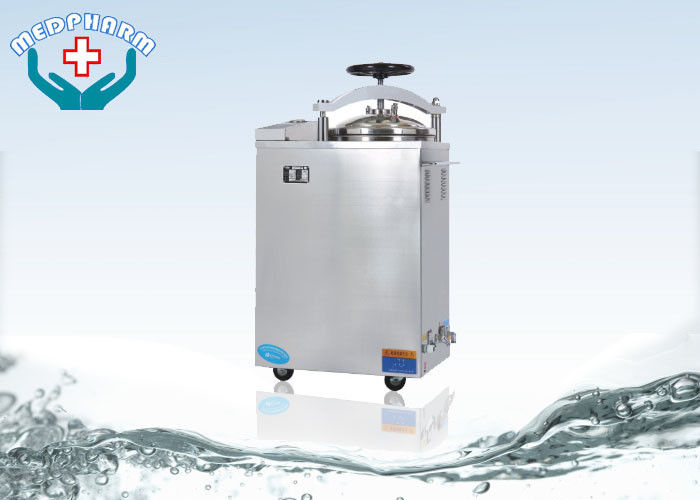

Automatically Controlled Vertical Medical Autoclave Sterilizer With Safety Lock System
Quick detail
Specifications
1. Hand wheel locked / unlocked lid style
2. Digital LED display of temperature and time and controlled by micro-computer
3. Working process indicator
4. Beep alarm and shut off after cycle finish
5. Steam inner circulation system
6. Drying system
Parameters
|
Max working pressure |
0.22MPa |
|
Max working temperature |
Max working temperature: 134℃ |
|
Adjustment of temperature |
105---134℃ |
|
Adjustment of Timer |
0---99min |
|
Chamber temperature difference |
≤±1℃ |
Model chart
|
Order No. |
Chamber |
Dimensions (mm) |
Package Dimensions (mm) |
NW/GW |
Power |
|
VT-35HG |
35L(φ318*450mm) |
600*410*1030 |
730*500*1170 |
77/96Kg |
2.5KW/AC220V,50Hz |
|
VT-50HG |
50L(φ340*550mm) |
650*410*1140 |
730*500*1290 |
83/102Kg |
3KW/AC220V,50Hz |
|
VT-75HG |
75L(φ400*600mm) |
690*470*1140 |
760*550*1290 |
98/120Kg |
4.5KW/AC220V,50Hz |
|
VT-100HG |
100L(φ440*650mm) |
730*510*1270 |
820*600*1380 |
110/135Kg |
4.5KW/AC220V,50Hz |
Applications
Vertical sterilizer for clinics, laboratories, research institutes, hospitals
