Product Details:
Payment & Shipping Terms:
|
| Door Type: | Vertical Sliding Door | Application: | Biological Engineering |
|---|---|---|---|
| Chamber Volume: | From 110 Liter To 600 Liter | Configuration: | Floor Standing |
| Steam Source: | Built-in Steam Generator | Chamber: | Made Of SS304 |
| High Light: | Pre Vacuum Steam Sterilizer,Table Top Autoclave Steam Sterilizer |
||

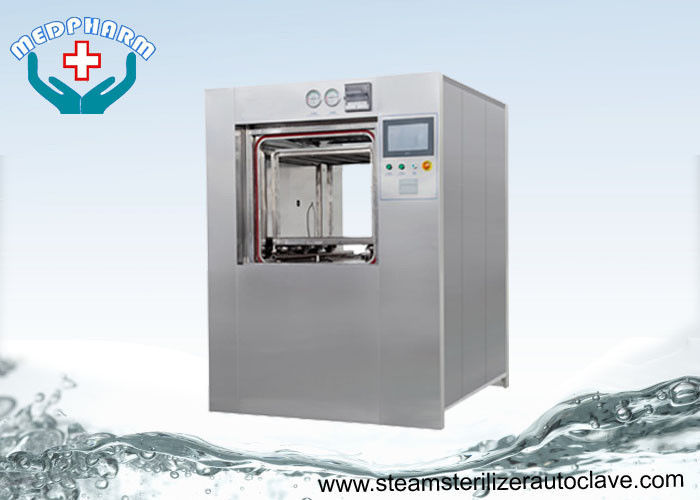

Front Loading Autoclave Steam Sterilizers With For Biological Sterilization
Model chart
|
Model |
Chamber Size |
Overall Size |
Steam |
Water |
Power |
|
W*H*D mm |
W*H*D mm |
Kg/cycle |
Kg/cycle |
KVA |
|
|
MDB-0.11V |
400*400*700 |
1000*1800*1040 |
14 |
10 |
2 |
|
MDB-0.16V |
400*400*1000 |
1000*1800*1340 |
16 |
15 |
2 |
|
MDB-0.20V |
400*400*1300 |
1000*1800*1640 |
18 |
20 |
2 |
|
MDB-0.24V |
600*600*670 |
1200*2000*1010 |
20 |
23 |
2 |
|
MDB-0.30V |
600*600*840 |
1200*2000*1180 |
22 |
25 |
2 |
|
MDB-0.36V |
600*600*1000 |
1200*2000*1340 |
25 |
40 |
3 |
|
MDB-0.45V |
600*600*1250 |
1200*2000*1590 |
27 |
50 |
3 |
|
MDB-0.60V |
600*600*1670 |
1200*2000*2010 |
30 |
60 |
3 |
Design
Medpharm sterilizers are value engineered for maximum throughput, efficiency, serviceability,
safety, and reliability. Our solid stainless steel rectangular chambers offer dual steam inlet
baffles for better temperature distribution, more usable space, including our center sloping
chamber floors to minimize condensate retention, reduce dry time, and allow for simple operation
cleanup
Materials of Construction
1. Chamber Options
304L Stainless Steel, 316L Stainless Steel
2. Jacket Options
304L Stainless Steel, 316L Stainless Steel
3. Steam Piping Options
304L Stainless Steel, 316L Stainless Steel
Specifications
1. DOORS: Vertical Sliding Door
The sterilizer is equipped with a vertical sliding door. The door is electric motor driven, opened and closed by pushbuttons on the operating panel.
The door is equipped with double safety devices to ensure the door cannot close if an obstacle is in the doorway.
The door is sealed by compressed-air pressurizing the continuous O ring gasket, which is recessed
within the chamber head ring against the door.
The gasket is retracted by vacuum before the door is opened
2. FRAME
The sterilizer chamber is secured to a structural frame. The frame is constructed of 304 stainless steel or quality steel coated. Adjustable screws at the base of the frame allow for leveling during installation.
3. VALVES
All control valves are non proprietary, industrial grade, pneumatic driven and made from stainless steel. If air is not available at your facility, an optional integral air compressor can be added.
4. OVERPRESSURE RELIEF
A safety relief valve is equipped on both the chamber and jacket to protect from over pressure. The safety relief valves are factory preset for the vessel design pressure and are checked and approved.
Medpharm medical large steam autoclave brochure.pdf
