High Pressure Autoclave Steam Sterilizer Stainless Steel Automatic Mushroom Vertical

China ZHANGJIAGANG MEDPHARM MACHINERY LTD. certification
China ZHANGJIAGANG MEDPHARM MACHINERY LTD. certification
It is worthy to cooperate with Medpharm again. Also, prompt action on after sales service left me a deep impression.

—— Manusawee Wareesuwan

I like the sterilizer here running in our factory,it is wonderful.It is fully made to my requirement.Before that I contact many suppliers but they can

—— Marina.Stolyrova

I'm Online Chat Now

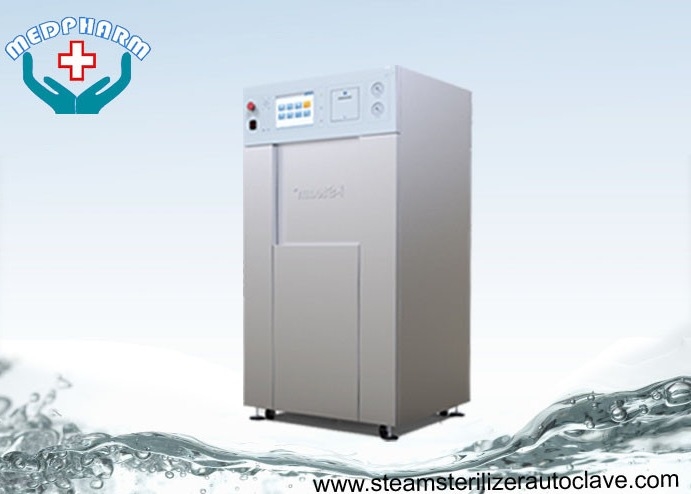

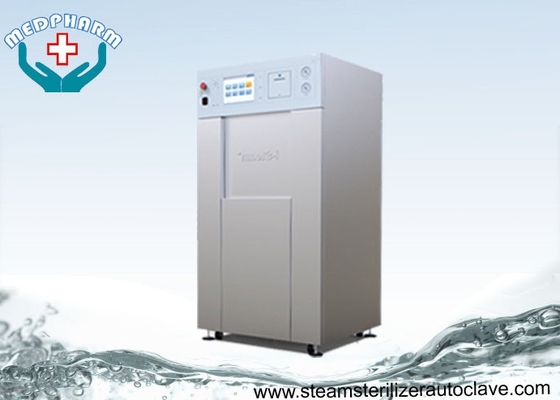

High Pressure Autoclave Steam Sterilizer Stainless Steel Automatic Mushroom Vertical

High Pressure Autoclave Steam Sterilizer Stainless Steel Automatic Mushroom Vertical
High Pressure Autoclave Steam Sterilizer Stainless Steel Automatic Mushroom Vertical

Large Image :  High Pressure Autoclave Steam Sterilizer Stainless Steel Automatic Mushroom Vertical

Product Details:
Place of Origin: China
Brand Name: Medpharm
Certification: CE/SGS
Model Number: MD-Y Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Solid plywood case suitable for long distance transportation
Delivery Time: 30 working days after received your payment
Payment Terms: T/T in advance/LC AT SIGHT
Supply Ability: 10 pcs per month
Detailed Product Description
Product Name: Autoclave Steam Sterilizer Password For Different Permissions: 3 Levels
Sterilization Temperature Range: 105 --- 134°C Chamber And Jacket Material: Customized
Volume: 800---8000 Liters Power: 3---12KVA, AC380v, 50Hz, 3P/N/E
Sterilization Medium: Saturated Steam
High Light:

High Pressure Autoclave Steam Sterilizer

,

Mushroom Vertical Autoclave Steam Sterilizer

,

Automatic Autoclave Steam Sterilizer

Stainless Steel Automatic Mushroom Vertical High Pressure Autoclave Steam Sterilizer​



• Full SUS 304 stainless steel structure
• Accurate dual scale indicates pressure gauge
• Silicone seal ensuring no steam leakage
• Spin buttons to set sterilization temperature and time
• Blue, orange, and red light showing work status
• Automatic release when overpressure
• Water shortage and over heating protection
• Drying action can be added (Best large than 75L volume)



Specifications

Model

Chamber Size

Overall Size

Net Weight

Steam

Water

Power

W*H*D mm

W*H*D mm

Kg

Kg/cycle

Kg/cycle

KVA

MD-0.8Y

680*1180*1000

2200*2000*1410

1480

35

280

3

MD-1.0Y

680*1180*1250

2200*2000*1660

1630

40

300

4

MD-1.2Y

680*1180*1500

2200*2000*1910

2030

45

320

4

MD-1.5Y

680*1180*1870

2200*2000*2280

2230

50

350

4.5

MD-2.0Y

1000*1200*1700

2800*2000*2110

2490

60

400

4.5

MD-3.0Y

1000*1500*2000

2800*2200*2410

3050

90

500

5

MD-4.0Y

1000*1500*2670

2800*2200*3080

3700

120

600

6

MD-5.0Y

1000*1500*3340

2800*2200*3750

4600

150

700

8

MD-6.0Y

1000*1500*4000

2800*2200*4410

5400

180

800

8

MD-8.0Y

1000*1500*5340

2800*2200*5750

7000

240

1000

12



Product Features

1. Bolt structure

2. High quality stainless steel material

3. Microcomputer automatic control, arbitrary set of sterilization parameters

4. Safety interlocking device

5. Digital display and touch buttons

6. Standard test interface

7. Self-expanding seal

8. The container with automatic protection function: overtemperature protection; overpressure protection self-discharge; low water level protection, anti dry burning with stainless steel bucket or basket

9. Buzzer reminder after sterilization, automatic stop.

10. Automatic cooling air, sterilization end automatic exhaust steam



Description:

Backed by rich experience, we have emerged as one of the leading manufacturers, exporter, distributor, wholesaler and suppliers of automatic Autoclave Steam Sterilizer. The offered Autoclave Steam Sterilizer are provided in diverse dimensions and specifications

as per customer’s demand.These steam sterilizers are manufactured after taking all the requirements of customers by using high quality of material & technology.



Ø Chamber Stainless Steel quality 304

Ø All outer body parts are stainless steel

Ø Fully automatic PLC control panel with online printer

Ø Short start up time

Ø Option to operate on 105℃ to 134℃

Ø Fitted with heavy duty vacuum pump

Ø Over 99.9% of air expulsion through purging

Ø 6 programmable cycles option for varying load i.e.

· Pre Start cycle

· Leakage Test

· 2-3 cycles for different loads @ 121℃

· 2-3 cycles for different loads @ 134℃

Ø Sliding Door Mechanism Double motorized

Ø High quality Silicone Gasket

Ø Pneumatic Door sealing system

Ø Stainless Steel Trolley systems



Applications:



Cloth, rubber stoppers, instruments, unsealed containers, media, animal cages, mushrooms soil and seasonings.



Competitive Advantage:



Easy to use – one touch operation.

Large capacity – From 800 to 8000 liters

Highly customizable – with a wide range of accessories and options.

Fast and economical – sterilization cycles from 21 minutes with advanced water and

energy saving systems.

Best solution – for pharmaceutical and biotechnological applications.



High Pressure Autoclave Steam Sterilizer Stainless Steel Automatic Mushroom Vertical 0

Brochure load down from here



Medpharm medical large steam autoclave brochure.pdf
