Super Heated Water Large Sterilizer With High Efficiency Circulation Water Pump And Heat Exchanger

Name: Super Heated Water Large Sterilizer With High Efficiency Circulation Water Pump And Heat Exchanger
Brand: Medpharm
SKU: MD-SYB series
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (157 reviews)

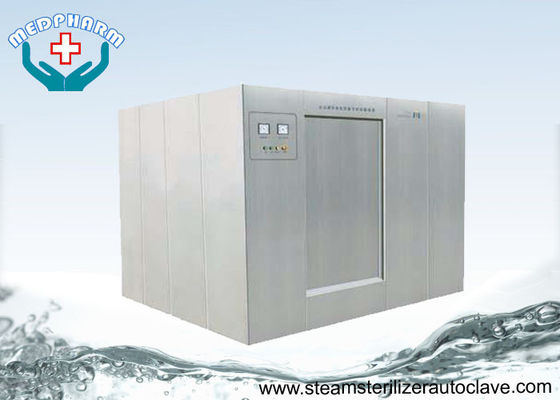

Large Image : Super Heated Water Large Sterilizer With High Efficiency Circulation Water Pump And Heat Exchanger

Product Details:

Place of Origin:	China
Brand Name:	Medpharm
Certification:	CE/SGS
Model Number:	MD-SYB series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Packed in plastic film firstly,and then reinforced with wooden case for outer packing
Delivery Time:	35 working days after received your payment
Payment Terms:	T/T in advance, LC AT SIGHT
Supply Ability:	10 pcs per month

Contact Now

Detailed Product Description

Material:	SS304 Chamber	Door Gasket:	Lubricant Free
Components:	Industrial-grade,non-proprietary	Chamber:	Mirror Polished Finished Chamber
Pipings:	Sloped To Drain With No Dead Legs	Valves:	Pneumatic Valves
Piping System Connection:	Tri-clamps	Standards:	GB150,cGMP
High Light:	Medical Waste Autoclave , Steam Autoclave Sterilizer

Super Heated Water Large Sterilizer With High Efficiency Circulation Water Pump And Heat Exchanger

Features

 Highly polished mirror finish chambers
 Meets and exceeds FDA cGMP’s
 304 stainless steel sanitary piping
 Piping sloped to drain with no dead legs
 Sanitary valves and components
 Extensive Validation documentation
 Chamber doors secured on four sides
 Lubricant-free door gaskets

Horizontal sliding doors that are precision machined operate with exceptional smoothness while providing a safer environment for the operator.

Door gaskets operate without the need for lubrication allowing for less maintenance and longer life span.

The chamber design utilizes a unique plate and beam construction that provides for a complete envelop around the chamber.

PLC-based control systems are intuitive, easily understood and operated, while providing the sophistication for maximum flexibility and ease in validation.

Technical of process control

The process begins with filling the chamber to a predetermined level with purified water.
The water is circulated by the pump through an external heat exchanger that is heated by plant steam.
The water is then sprayed onto the product as the temperature rises.
Due to the efficient heat transfer, the product is heated rapidly.
Compressed air at an over-pressure is injected into the chamber to compensate for the rising temperature and pressure that builds inside liquid containers when heated.
At the end of the exposure step, cooling begins.
The circulating water is cooled by an external heat exchanger that is cooled with cooling or chilled water.
The product is quickly cooled to ambient temperature by continuously spraying the circulating water over the load.
This method of sterilization is the fastest method for sterilization of liquids in sealed containers.

Sanitary Piping Systems

All piping and ports in contact with the chamber are constructed of 304 stainless steel and are sloped for drain-ability.
Easily removable sanitary clamp fittings are used for ease in removal of components.
Non-proprietary sanitary valves and components are selected for their reliability and availability to reduce down time.

Validation

Every Medpharm water spray sterilizer is subject to rigorous pre-validation testing at the

factory and shipped with an extensive documentation package in order to minimize the time

required for on-site validation.IQ/OQ protocols as well as on-site execution are available as options.

Program Parameter

Cycle name	Further details	Application
Instruments/Tools	3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min.	Solid materials to be sterilized: ●Packaged instruments ●Empty glass containers ●Empty metal containers Porous materials to be sterilized: ●Rubber articles
Clothing	3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min.	Materials to be sterilized from which air can’t be easily displaced ●Textile
User Programmable	All preset parameters can be reset; Multiple customized programs can be set and stored by user.	Customized
