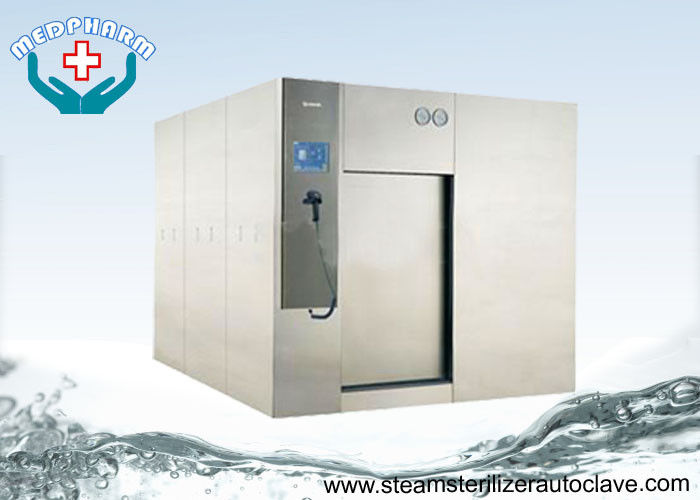

PLC System Large Pharmaceutical Autoclave Steam Sterilizer With Horizontal Sliding Door

PLC System Large Pharmaceutical Autoclave Steam Sterilizer With Horizontal Sliding Door

Application

The lager pharmaceutical autoclaves are designed and manufactured in a state of the art facility in compliance with cGMP regulations to meet the technical challenges of pharma and biotech industries.

Key Features

• 304 stainless steel pressure vessel
• 5.7" Colour Touch Screen with a large range of features
• Multiple Programmes
• Automatic horizontal sliding Door(s)
• Interlocking system for Double Door models
• Fully automatic cycle through PLC (PLC with computer based system with Printer)
• Technical Details: The system is equipped with a PC based Controlled Process Management System.
• Accurate temperature and pressure sensor

Specifications


Quality Standards

• cGMP
• ISO 9001:2008 - Quality Management Systems
• ISO 13485:2012 Quality Management System – Medical Devices

Control System

Consolidated offers a variety of control system options for programmed, automatic operation. Controllers are built from industry standard, open source components for international availability of parts and service

• Permits industry standard and custom sterilizer cycles.
• Simplifies operation with intuitive operator interfaces.
• Assures quality control and process integrity.
• Features sterilizer cycle quality reporting and printed documentation.
• Audible and visual alarms warn of cycle or other deviations

Operator Panels

The control system is operated via an easy- to-use “menu ”. As default, the operator has access to the cycle selection, cycle start and door control.

Operators can only run type-tested cycles. Access to other functions, such as running test cycles, setting parameters, calibration, service and maintenance is controlled using a pre-defined access levels preventing unauthorized access.

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
